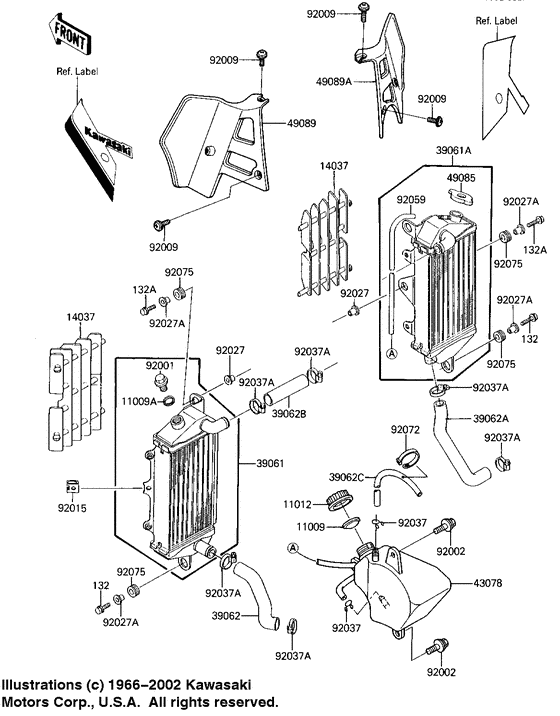

Radiator/coolant tank Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
132A
|
132A
132G0630
BOLT-FLANGED-SMALL
|
132G0630 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKGasket,reserve tank; |
11009-1145 |
from US $1.79 |
||
|
11009A
|
11009A
11009-1152 GASKET,DRAIN PLUGGasket,drain plug; |
11009-1152 |
from US $5.54 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANKCap,reserve tank; |
11012-1084 |
from US $2.14 |
||
|
14037
|
14037
14037-1077-6C SCREEN,RADIATOR,EBONYScreen,radiator,ebony; |
14037-1077-6C |
US $19.01 |
||
|
39061
|
39061
39061-1079 RADIATOR-ASSY,LHRadiator-assy,lh; |
39061-1079 |
US $561.06 |
||
|
39061A
|
39061A
39061-1080 RADIATOR-ASSY,RHRadiator-assy,rh; |
39061-1080 |
US $475.16 |
||
|
39062
|
39062
39062-1094 HOSE-COOLING,CYLINDERHose-cooling,cylinder; |
39062-1094 |
US $13.62 |
||
|
39062A
|
39062A
39062-1095 HOSE-COOLING,RADIATORHose-cooling,radiator; |
39062-1095 |
US $24.17 |
||
|
39062B
|
39062B
39062-1184 HOSE-COOLING,RADIATOR |
39062-1184 |
US $22.25 |
||
| replacement | |||||
|
39062B
|
39062B
39062-1256 HOSE-COOLING,RADIATOR |
39062-1256 |
from US $16.01 |
||
|
39062C
|
39062C
39062-1187 HOSE-COOLING,5.5X10.5 |
39062-1187 |
US $29.25 |
||
| replacement | |||||
|
39062C
|
39062C
39062-0080 HOSE-COOLING,5.5X10.5 |
39062-0080 |
from US $25.50 |
||
|
43078
|
43078
43078-1075
RESERVOIR
|
43078-1075 |
— | ||
|
49085
|
49085
49085-1003
Cap-assy-pressure
|
49085-1003 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
49089
|
49089
49089-1066-6W
SHROUD-ENGINE
|
49089-1066-6W |
— | ||
|
49089A
|
49089A
49089-1067-6W
SHROUD-ENGINE
|
49089-1067-6W |
— | ||
|
92001
|
92001
92002-1682 BOLT,RADIATOR DRAINBolt,radiator drain; |
92002-1682 |
from US $13.62 |
||
|
92002
|
92002
92150-1340
BOLT,6X14
Bolt,6x14; |
92150-1340 |
— | ||
| replacement | |||||
|
92002
|
92002
92150-1505 BOLTBolt,6x14; |
92150-1505 |
from US $3.01 |
||
|
92009
|
92009
92009-1286 SCREW,6X10Screw,6x10; |
92009-1286 |
from US $2.69 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92027
|
92027
92027-1045 COLLAR |
92027-1045 |
from US $3.33 |
||
|
92027A
|
92027A
92027-1183 COLLARCollar,radiator guard; |
92027-1183 |
from US $4.09 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,chain oiler; |
92037-147 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1589 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1589 |
from US $12.04 |
||
|
92059
|
92059
92059-1383
TUBE,6X9X700
Tube,5x9x800; |
92059-1383 |
— | ||
| replacement | |||||
|
92059
|
92059
92191-1211 TUBE,6X9X700Tube,5x9x800; |
92191-1211 |
from US $6.38 |
||
|
92072
|
92072
92072-3505
BAND
|
92072-3505 |
— | ||
|
92075
|
92075
92075-1352 DAMPER,RADIATORDamper,radiator; |
92075-1352 |
from US $3.80 |
||
