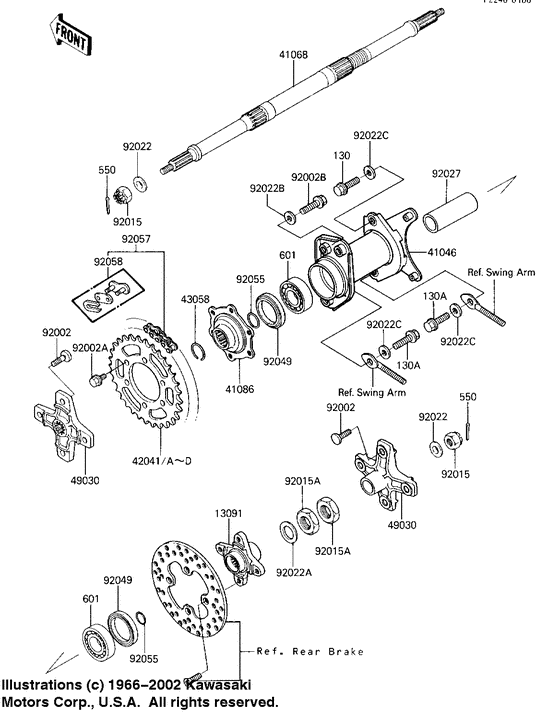

Rear hub/axle/chain Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P1230
BOLT-FLANGED
|
130P1230 |
— | ||
|
130A
|
130A
130P1235
BOLT-FLANGED
|
130P1235 |
— | ||
|
550
|
550
550D4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550D4035 |
US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA4035 PIN-COTTER,4.0X35Pin-cotter,4.0x35; |
550AA4035 |
from US $0.91 |
||
|
601
|
601
601A6008UU BEARINGBearing; |
601A6008UU |
from US $30.64 |
||
|
13091
|
13091
13091-1470 HOLDER,DISC PLATEHolder,disc plate; |
13091-1470 |
US $91.58 |
||
|
41046
|
41046
41046-1079 HOUSING-BEARING |
41046-1079 |
US $83.56 |
||
|
41068
|
41068
41068-1216
AXLE,RR
Axle,rr; |
41068-1216 |
— | ||
|
41086
|
41086
41086-1063
FLANGE,REAR SPROCKET
Flange,rear sprocket; |
41086-1063 |
— | ||
|
42041
|
42041
42041-1236 SPROCKET-HUB(option) |
42041-1236 |
US $76.25 |
||
|
42041A
|
42041A
42041-1237 SPROCKET-HUB(option) |
42041-1237 |
US $76.25 |
||
|
42041B
|
42041B
42041-1238 SPROCKET-HUB |
42041-1238 |
US $76.25 |
||
|
42041C
|
42041C
42041-1239 SPROCKET-HUB(option) |
42041-1239 |
US $60.41 |
||
|
42041D
|
42041D
42041-1240
SPROCKET-HUB
(option) |
42041-1240 |
— | ||
|
43058
|
43058
43058-1060
RING,SNAP
Ring,snap; |
43058-1060 |
— | ||
|
49030
|
49030
49030-1078
HUB,RR
Hub,rr; |
49030-1078 |
— | ||
|
92002
|
92002
92002-1388 BOLT,10X30Bolt,10x30; |
92002-1388 |
from US $5.13 |
||
|
92002A
|
92002A
92002-1645 BOLT,FLANGED,8X16Bolt,flanged,8x16; |
92002-1645 |
from US $2.95 |
||
|
92002B
|
92002B
92002-1714
BOLT
|
92002-1714 |
— | ||
|
92015
|
92015
42045018 NUT CASTLE,18MMNut castle,18mm; |
42045018 |
from US $7.76 |
||
|
92015A
|
92015A
92015-1545 NUT,LOCK,37MMNut,lock,37mm; |
92015-1545 |
from US $10.43 |
||
|
92022
|
92022
92022-1658 WASHER,18.3X34X4.5Washer,18.3x34x4.5; |
92022-1658 |
from US $3.17 |
||
|
92022A
|
92022A
92022-1746 WASHER,37.5X48X2.3Washer,37.5x48x2.3; |
92022-1746 |
from US $3.89 |
||
|
92022B
|
92022B
92022-1806 WASHER |
92022-1806 |
US $5.26 |
||
|
92022C
|
92022C
92022-4037 WASHER,12.5X28X4.5Washer,12.5x28x4.5; |
92022-4037 |
US $8.42 |
||
|
92027
|
92027
92027-1953 COLLAR,40.2X45.4X129Collar,40.2x45.4x129; |
92027-1953 |
US $33.98 |
||
|
92049
|
92049
92049-1237 SEAL-OIL |
92049-1237 |
from US $8.24 |
||
|
92055
|
92055
92055-1317 RING-O,38MMRing-o,38mm; |
92055-1317 |
from US $2.79 |
||
|
92057
|
92057
92057-1203 DR CHAIN,EK520SH-0X94Dr chain,ek520sh-0x94; |
92057-1203 |
US $187.87 |
||
|
92058
|
92058
92058-1055 JOINT-CHAIN,DRIVEJoint-chain,drive; |
92058-1055 |
US $8.50 |
||
