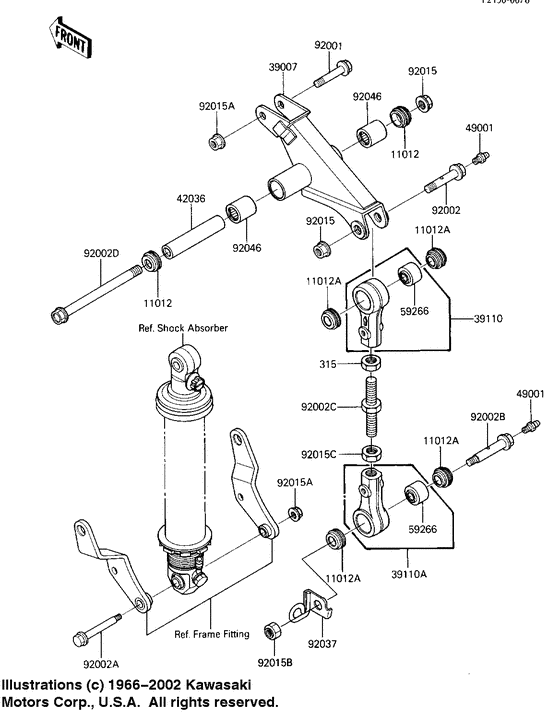

Rear suspension Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
315
|
315
315G1600 NUT-HEX-FINE |
315G1600 |
from US $1.74 |
||
| replacement | |||||
|
315
|
315
315BA1600 NUT-HEX-FINE |
315BA1600 |
from US $1.27 |
||
|
11012
|
11012
11012-1207
CAP,SWING ARM
Cap,swing arm; |
11012-1207 |
— | ||
|
11012A
|
11012A
11012-1418
CAP,ROD
Cap,rod; |
11012-1418 |
— | ||
|
39007
|
39007
39007-1097 ARM-SUSP,UNI TRAKArm-susp,uni trak; |
39007-1097 |
US $173.05 |
||
|
39110
|
39110
39110-1067 ROD-ASSY-TIE |
39110-1067 |
US $145.31 |
||
|
39110A
|
39110A
39110-1068 ROD-ASSY-TIE |
39110-1068 |
US $145.31 |
||
|
42036
|
42036
42036-1172 SLEEVE,14X20X106Sleeve,14x20x106; |
42036-1172 |
US $21.38 |
||
|
49001
|
49001
49001-1051
NIPPLE-GREASE
Nipple-grease,rod bol; |
49001-1051 |
— | ||
| replacement | |||||
|
49001
|
49001
49001-0001 NIPPLE-GREASENipple-grease,rod bol; |
49001-0001 |
from US $2.06 |
||
|
59266
|
59266
59266-1056
JOINT-BALL,ROD
Joint-ball,rod; |
59266-1056 |
— | ||
|
92001
|
92001
92001-1962
BOLT,FLANGED,10X48
Bolt,flanged,10x48; |
92001-1962 |
— | ||
|
92002
|
92002
92002-1390 BOLT,FLANGED,14X57Bolt,flanged,14x57; |
92002-1390 |
US $35.33 |
||
|
92002A
|
92002A
92002-1395 BOLT,10X68Bolt,10x68; |
92002-1395 |
US $10.96 |
||
|
92002B
|
92002B
92002-1397
BOLT,ROD,10X65
Bolt,rod,10x65; |
92002-1397 |
— | ||
|
92002C
|
92002C
92002-1632
BOLT,ROD
Bolt,rod; |
92002-1632 |
— | ||
|
92002D
|
92002D
92002-1638 BOLT,ARM,14X152Bolt,arm,14x152; |
92002-1638 |
US $24.10 |
||
|
92015
|
92015
92015-1407 NUT,14MMNut,14mm; |
92015-1407 |
from US $6.34 |
||
|
92015A
|
92015A
92015-1415 NUT,10MMNut,10mm; |
92015-1415 |
from US $3.54 |
||
|
92015B
|
92015B
92015-1429 NUT,LOCK,10MMNut,10mm; |
92015-1429 |
from US $4.12 |
||
|
92015C
|
92015C
92015-1548 NUT,16MMNut,16mm; |
92015-1548 |
US $4.77 |
||
|
92037
|
92037
92037-1848
CLAMP
|
92037-1848 |
— | ||
|
92046
|
92046
92046-1128 BEARING-NEEDLE,TA2030Bearing-needle,ta2030; |
92046-1128 |
from US $21.07 |
||
