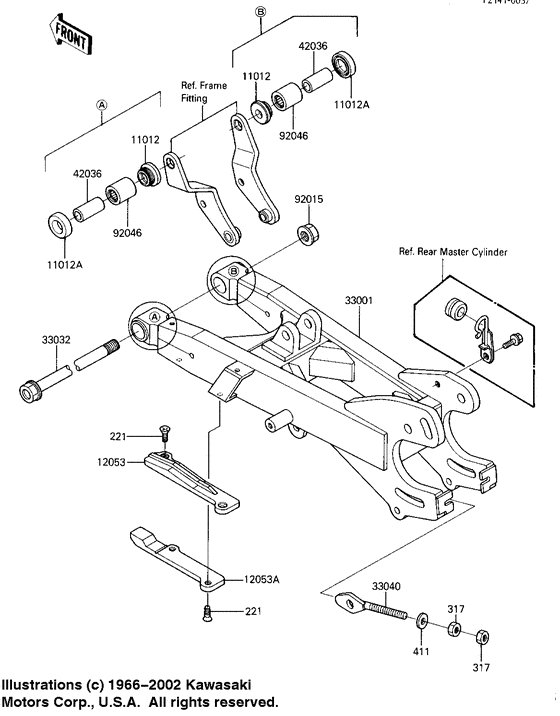

Swing arm Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
221
|
221
221B0610
SCREW CNTSNK HD 6X10
Screw cntsnk hd 6x10; |
221B0610 |
— | ||
| replacement | |||||
|
221
|
221
221AA0610 SCREW-CNTSNK HD,6X10Screw cntsnk hd 6x10; |
221AA0610 |
from US $1.25 |
||
|
317
|
317
317G0800 NUT-HEX-SMALL,8MMNut,8mm; |
317G0800 |
from US $1.11 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MMNut,8mm; |
317BA0800 |
from US $0.95 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
11012
|
11012
11012-1355
CAP,SWING ARM
Cap,swing arm; |
11012-1355 |
— | ||
|
11012A
|
11012A
11012-1417 CAP,SWING ARMCap,swing arm; |
11012-1417 |
US $15.61 |
||
|
12053
|
12053
12053-1101
GUIDE-CHAIN,FR,UPP
Guide-chain,fr,upp; |
12053-1101 |
— | ||
|
12053A
|
12053A
12053-1144
GUIDE-CHAIN
|
12053-1144 |
— | ||
|
33001
|
33001
33001-1265 ARM-COMP-SWING |
33001-1265 |
US $309.65 |
||
|
33032
|
33032
33032-1112 SHAFT-SWING ARM |
33032-1112 |
US $71.28 |
||
|
33040
|
33040
33040-4006
ADJUSTER-CHAIN
|
33040-4006 |
— | ||
|
42036
|
42036
42036-1145 SLEEVE,SWING ARM,L=40Sleeve,swing arm,l=40; |
42036-1145 |
US $14.78 |
||
|
92015
|
92015
92015-1407 NUT,14MMNut,14mm; |
92015-1407 |
from US $6.34 |
||
|
92046
|
92046
92046-1128 BEARING-NEEDLE,TA2030Bearing-needle,ta2030; |
92046-1128 |
from US $21.07 |
||
