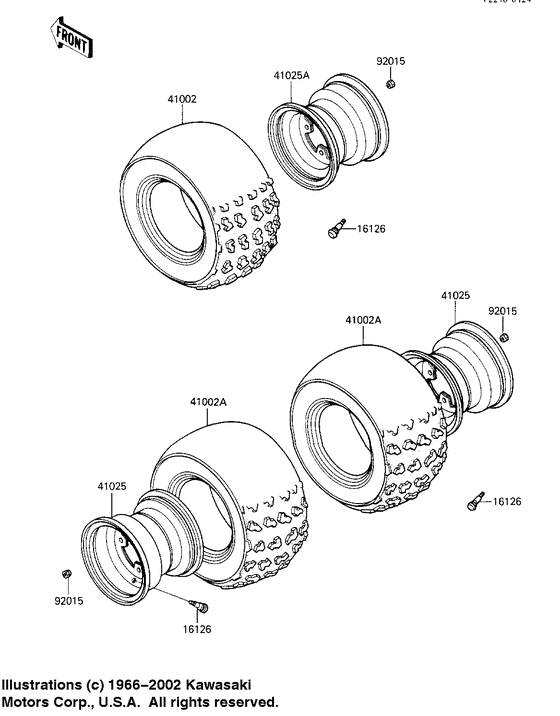

Wheels/tires Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIREValve,tire; |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-1549
TIRE,FR,23X9.00-11,KT
Tire,fr,23x9.00-11,kt; |
41002-1549 |
— | ||
|
41002A
|
41002A
41002-1550
TIRE,RR,20X11.00-10,K
Tire,rr,20x11.00-10,k; |
41002-1550 |
— | ||
|
41025
|
41025
41025-1151-F2
RIM,RR 10X85 G SILVER
Rim,rr 10x85 g silver; |
41025-1151-F2 |
— | ||
|
41025A
|
41025A
41025-1172-F2 RIM FR 7.00X11 G SVLR |
41025-1172-F2 |
US $107.21 |
||
|
92015
|
92015
92015-1415 NUT,10MMNut,10mm; |
92015-1415 |
from US $3.54 |
