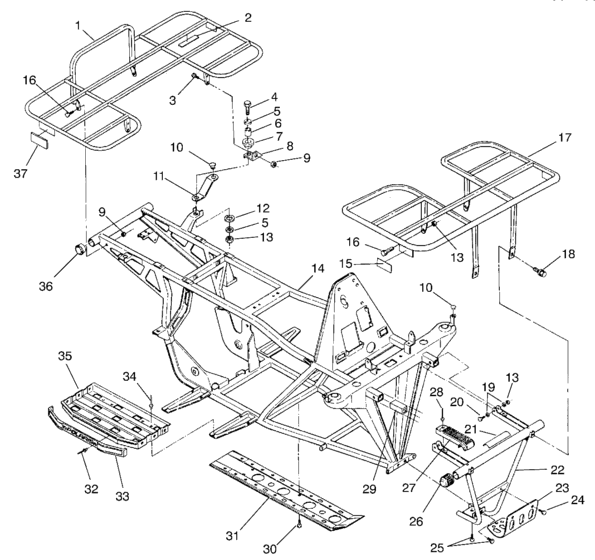

Bumper/rack mounting (W937527) Diagram Polaris 250 2X4
- Model code
- W937527
- Year
- 1993
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2670136-067
Rack,rear,blk,
|
2670136-067 |
— | ||
|
2
|
2
5810455 Pad |
5810455 |
US $1.66 |
||
|
3
|
3
7515355
Screw
10; |
7515355 |
— | ||
|
4
|
4
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
5
|
5
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
6
|
6
5010192 Bushing |
5010192 |
US $4.94 |
||
|
7
|
7
5410241
Dampener, vibration
|
5410241 |
— | ||
|
8
|
8
5243468-067
Brkt,support rack,lh,blk
|
5243468-067 |
— | ||
|
8
|
8
5243469-067
Brkt,support rack,rh,blk
|
5243469-067 |
— | ||
|
9
|
9
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
10
|
10
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
11
|
11
5220902-067 Support,r,fender |
5220902-067 |
US $36.61 |
||
|
12
|
12
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
13
|
13
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
14
|
14
1040252-067
Frame, main
|
1040252-067 |
— | ||
|
15
|
15
2670134 Asm,,reflector,amber |
2670134 |
US $10.83 |
||
|
16
|
16
7512307 Screw |
7512307 |
US $2.45 |
||
|
17
|
17
2670135-067 Rack,frt,blk, |
2670135-067 |
US $195.09 |
||
|
18
|
18
7512252
Screw
|
7512252 |
— | ||
|
19
|
19
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
20
|
20
7512329 Bolt |
7512329 |
US $4.59 |
||
|
21
|
21
7073455
Decal, f.susp.
|
7073455 |
— | ||
|
22
|
22
2670106-067
Bumper,frt,
|
2670106-067 |
— | ||
|
23
|
23
5220981
Skid-plate,fr,bumper
|
5220981 |
— | ||
|
24
|
24
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
25
|
25
7512399 Screw |
7512399 |
US $3.94 |
||
|
26
|
26
5431013-157 Cap,bumper,fr,bon,blue |
5431013-157 |
US $15.86 |
||
|
27
|
27
5431023 Cover,brkt,bumper mt, |
5431023 |
US $13.20 |
||
|
28
|
28
7621229 Rivet(50) |
7621229 |
US $0.79 |
||
|
29
|
29
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
30
|
30
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
31
|
31
5220922-067
Guard, rock, blk,
|
5220922-067 |
— | ||
|
32
|
32
7661825 Rivet,(50)50; |
7661825 |
US $0.79 |
||
|
33
|
33
5431484
Trim, footrest
|
5431484 |
— | ||
|
34
|
34
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
34
|
34
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
35
|
35
1040274
Footpad,lh,
ATV; |
1040274 |
— | ||
| replacement | |||||
|
35
|
35
1040274-117 Footpad,lh,silverATV; |
1040274-117 |
US $101.45 |
||
|
36
|
36
5410794
Plug, bumper cap
10; |
5410794 |
— | ||
| replacement | |||||
|
36
|
36
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
37
|
37
2670133 Reflector asm,red |
2670133 |
US $9.45 |
||
