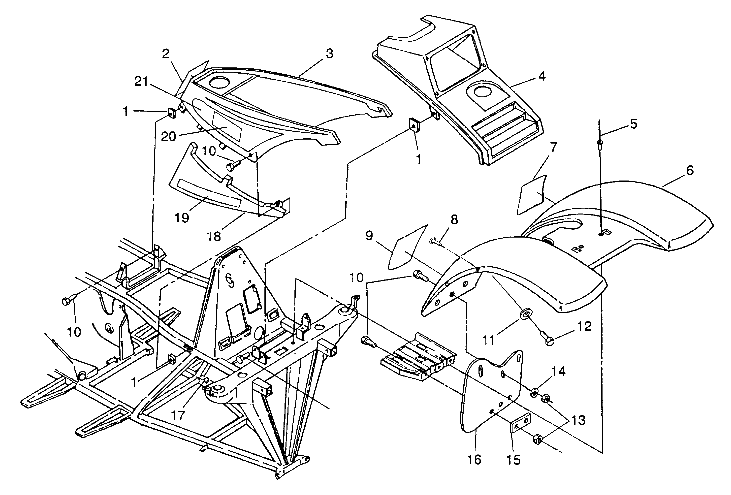

Front cab assembly (W937527) Diagram Polaris 250 2X4
- Model code
- W937527
- Year
- 1993
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
2
|
2
7074827
Decal,age warn,,atv
|
7074827 |
— | ||
| replacement | |||||
|
2
|
2
7078253
Decal, age warning
|
7078253 |
— | ||
|
3
|
3
5431197-157
Cover,fueltank,bon.blue
|
5431197-157 |
— | ||
|
4
|
4
5430973-157
Cover,oil-h/l,bon.blue
|
5430973-157 |
— | ||
|
5
|
5
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
6
|
6
2631549-143
Cab,fr
|
2631549-143 |
— | ||
|
7
|
7
7072693
Decal,warning
CPSC; |
7072693 |
— | ||
|
8
|
8
7670052 Clip, push-on |
7670052 |
US $2.45 |
||
|
9
|
9
7073147
Decal,warning disc
CPSC; |
7073147 |
— | ||
|
10
|
10
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
11
|
11
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
12
|
12
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
13
|
13
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
14
|
14
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
15
|
15
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
15
|
15
5211020-067
Brkt,rh mud flap
|
5211020-067 |
— | ||
|
16
|
16
5850082-070 Mudflap,frt,lh,blk, |
5850082-070 |
US $14.28 |
||
|
16
|
16
5850083-070
Mudflap,rh,front
|
5850083-070 |
— | ||
|
17
|
17
5411426
Bumper,rubber-hole,.5dia
|
5411426 |
— | ||
|
18
|
18
5430970-157
Cover,lh,bon.blue,sidepan
|
5430970-157 |
— | ||
| replacement | |||||
|
18
|
18
5433382-157
New Genuine Part
|
5433382-157 |
— | ||
|
18
|
18
5430971-157
Cover,rh,bon.blue,sidepan
|
5430971-157 |
— | ||
| replacement | |||||
|
18
|
18
5433579-157 Cover-side panel,rh,gen2,b blu |
5433579-157 |
US $54.41 |
||
|
19
|
19
7073794
Decal,`polaris`sidepanel(93-2x4
|
7073794 |
— | ||
|
20
|
20
7073793
Decal,`2x4`
|
7073793 |
— | ||
|
21
|
21
7073791
Decal,lh tank side
|
7073791 |
— | ||
|
21
|
21
7073792
Decal,rh,tankside
93-350 4X4; |
7073792 |
— | ||
