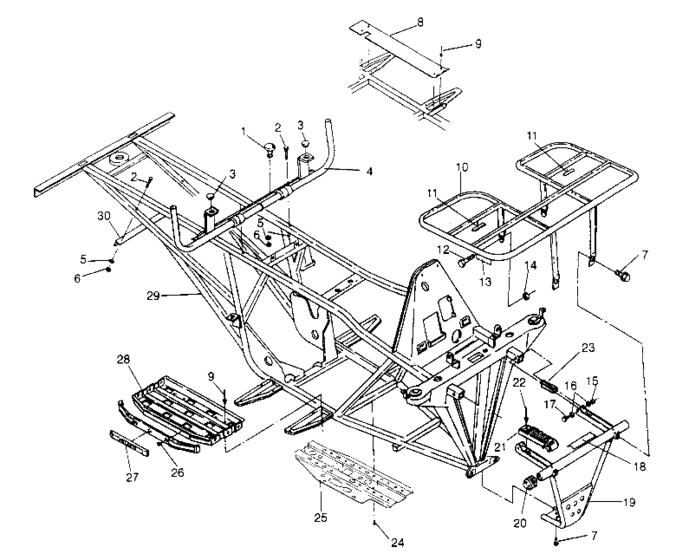

Bumper/rack mounting (6x6 300 W948730) Diagram Polaris 300 6X6
- Model code
- W948730
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
2
|
2
7512130 Bolt10; |
7512130 |
US $2.45 |
||
|
3
|
3
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
3
|
3
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
4
|
4
1040176-067
Leverlatch,box,blk,
|
1040176-067 |
— | ||
|
5
|
5
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
6
|
6
7542124 Nut10; |
7542124 |
US $1.89 |
||
|
7
|
7
7512252
Screw
10; |
7512252 |
— | ||
|
8
|
8
5222860-067
Guard,clutch,outer
|
5222860-067 |
— | ||
|
9
|
9
7661637 Rivet,interlock,z(50) *50; |
7661637 |
US $0.79 |
||
|
10
|
10
2670135-067 Rack,frt,blk, |
2670135-067 |
US $195.09 |
||
|
11
|
11
5810455 Pad |
5810455 |
US $1.66 |
||
|
12
|
12
7515355
Screw
10; |
7515355 |
— | ||
|
13
|
13
2670134 Asm,,reflector,amber |
2670134 |
US $10.83 |
||
|
14
|
14
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
15
|
15
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
16
|
16
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
17
|
17
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
18
|
18
7074220
Decal,macpherson strut
|
7074220 |
— | ||
|
19
|
19
2670113-067
Bumper,fr,
BLK.; |
2670113-067 |
— | ||
|
20
|
20
5431013-157 Cap,bumper,fr,bon,blue |
5431013-157 |
US $15.86 |
||
|
21
|
21
5431023 Cover,brkt,bumper mt, |
5431023 |
US $13.20 |
||
|
22
|
22
7621229 Rivet(50)50; |
7621229 |
US $0.79 |
||
|
23
|
23
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
24
|
24
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
25
|
25
5240560-067 Guard,rock,blk, |
5240560-067 |
US $121.31 |
||
|
26
|
26
7661825 Rivet,(50)50; |
7661825 |
US $0.79 |
||
|
27
|
27
5431484
Trim, footrest
|
5431484 |
— | ||
|
28
|
28
1040274-117 Footpad,lh,silver |
1040274-117 |
US $101.45 |
||
|
28
|
28
1040351-117
Footpad,rh,silver
|
1040351-117 |
— | ||
|
29
|
29
1040369-067
Frame
No Longer Available; 300-6X6; |
1040369-067 |
— | ||
|
30
|
30
1040293-067
Mt,rear strut
|
1040293-067 |
— | ||
