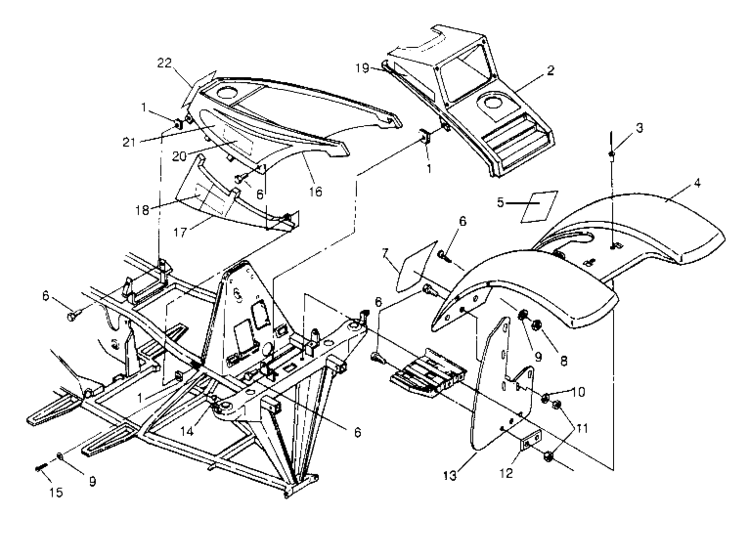

Front cab assembly (6x6 300 W948730) Diagram Polaris 300 6X6
- Model code
- W948730
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
2
|
2
5430973-132
Cover,h/l.
STL.GREY; |
5430973-132 |
— | ||
|
3
|
3
7621460 Rivet(50)50; |
7621460 |
US $3.94 |
||
|
4
|
4
2631636-157
Cab asm,fr,(300-6x6)
300-6X6;Incl. 3; |
2631636-157 |
— | ||
|
5
|
5
7073146
Decal,wrn,
No Longer Available; CPSC;6X6; |
7073146 |
— | ||
|
6
|
6
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
7
|
7
7074207
Decal,shift pattern
|
7074207 |
— | ||
|
8
|
8
7542103 Nut,flexloc10; |
7542103 |
US $9.19 |
||
|
9
|
9
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
10
|
10
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
11
|
11
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
12
|
12
5211020-067
Brkt,rh mud flap
|
5211020-067 |
— | ||
|
12
|
12
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
13
|
13
5850086
Mudflap,lh front
|
5850086 |
— | ||
|
13
|
13
5850091
Mudflap,rh,front
|
5850091 |
— | ||
|
14
|
14
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
14
|
14
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
15
|
15
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
16
|
16
5431197-157
Cover,fueltank,bon.blue
|
5431197-157 |
— | ||
|
17
|
17
5430970-132
Cover,lh(stl,grey)side
STL.GREY; |
5430970-132 |
— | ||
| replacement | |||||
|
17
|
17
5433578-132 Cover-side panel,lh,gen2,stgrySTL.GREY; |
5433578-132 |
US $71.89 |
||
|
17
|
17
5430971-132
Cover,rhside
STL.GREY; |
5430971-132 |
— | ||
| replacement | |||||
|
17
|
17
5433579-132
New Genuine Part
STL.GREY; |
5433579-132 |
— | ||
|
18
|
18
7074356
Decal,"300"
|
7074356 |
— | ||
|
19
|
19
7073812
Decal,`polaris`sidepanel
|
7073812 |
— | ||
|
20
|
20
7073816
Decal,bigboss 6x6
|
7073816 |
— | ||
|
21
|
21
7073809
Decal,lh,tankside,
93-250 6X6; |
7073809 |
— | ||
|
21
|
21
7073810
Decal,rh,tankside
|
7073810 |
— | ||
|
22
|
22
7072934
Decal,age warn.
No Longer Available; CPSC; |
7072934 |
— | ||
