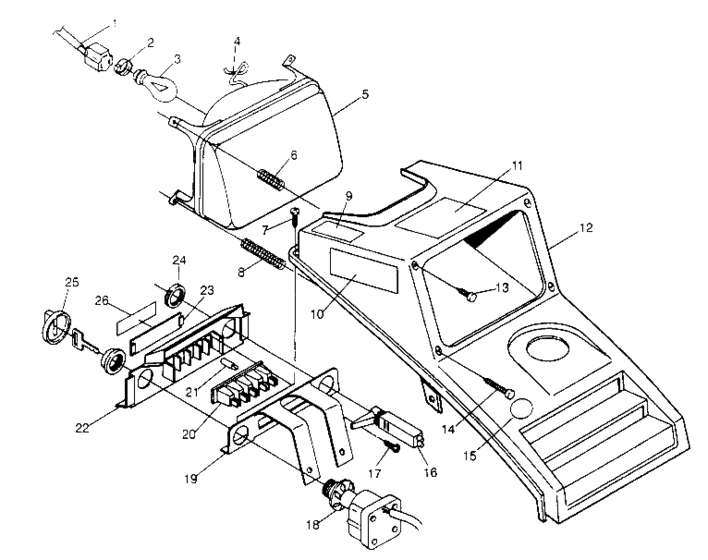

Headlight assembly (6x6 300 W948730) Diagram Polaris 300 6X6
- Model code
- W948730
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460427
Harness,headlight
|
2460427 |
— | ||
|
2
|
2
4032066 Cover,socket,h/l, |
4032066 |
US $24.40 |
||
|
3
|
3
4030028 Bulb, h/l |
4030028 |
US $28.93 |
||
|
4
|
4
4032063 Retainer,h/l bulb |
4032063 |
US $10.01 |
||
|
5
|
5
4032065
H/l asm,w/bulbseal
|
4032065 |
— | ||
|
6
|
6
4032002 Spring-adj |
4032002 |
US $22.89 |
||
|
7
|
7
7512017 Screw10; |
7512017 |
US $2.45 |
||
|
8
|
8
4032041
Spring,adj,
|
4032041 |
— | ||
|
9
|
9
7073163
Decal,warn,
DEMAND 6 SW.; |
7073163 |
— | ||
| replacement | |||||
|
9
|
9
7074935
Decal - warning, awd switch
DEMAND 6 SW.; |
7074935 |
— | ||
|
10
|
10
7073812
Decal,`polaris`sidepanel
|
7073812 |
— | ||
|
11
|
11
7074199
Decal,certif,
6-WHL.; |
7074199 |
— | ||
|
12
|
12
5430973-132
Cover,h/l.
STL.GREY; |
5430973-132 |
— | ||
|
13
|
13
4032003
Screw, adj.
10; |
4032003 |
— | ||
|
14
|
14
4032042 Screw,adjust,(atv)ATV;10; |
4032042 |
US $3.94 |
||
|
15
|
15
7074695
Logo,"40 years"
|
7074695 |
— | ||
|
16
|
16
2200188 Kit-choke control |
2200188 |
US $24.61 |
||
|
16
|
16
7080371 Cable, choke |
7080371 |
US $86.68 |
||
|
17
|
17
7511862 Screw10; |
7511862 |
US $3.75 |
||
|
18
|
18
4110140 Switch, ignitionSee Footnote; |
4110140 |
US $118.18 |
||
|
19
|
19
5220965-067 Brkt, ign, panel |
5220965-067 |
US $18.76 |
||
|
20
|
20
4032037 Strip, socket |
4032037 |
US $33.50 |
||
|
21
|
21
4030042 Bulb |
4030042 |
US $4.34 |
||
|
22
|
22
5430995
Panel, ignition
|
5430995 |
— | ||
|
23
|
23
2652049
Lens asm,pilot light
Incl. 26; |
2652049 |
— | ||
|
24
|
24
7080229 Nut |
7080229 |
US $16.24 |
||
|
25
|
25
5431964
Cover, key
|
5431964 |
— | ||
| replacement | |||||
|
25
|
25
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
26
|
26
7072528
Decal, panel
No Longer Available; |
7072528 |
— | ||
