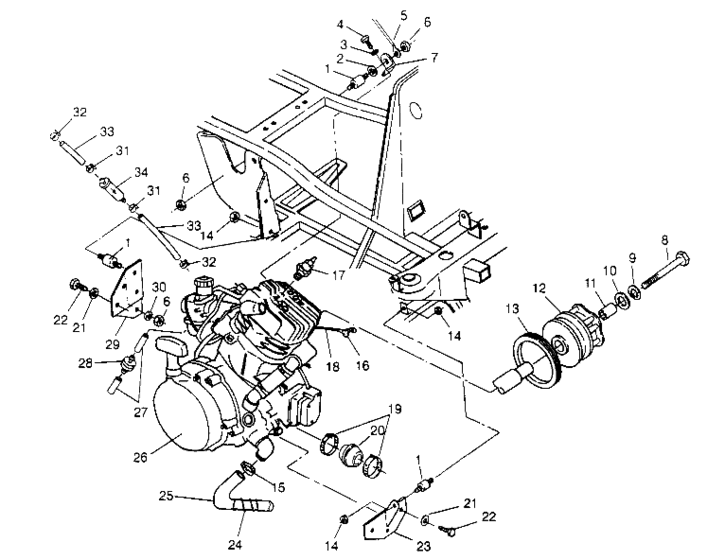

Engine mounting (2x4 400L W947540) Diagram Polaris 400L 2X4
- Model code
- W947540
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3110038
Mount, motor
|
3110038 |
— | ||
|
2
|
2
5430802 Insulator,motor mt, |
5430802 |
US $7.09 |
||
|
3
|
3
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
4
|
4
7515321 Bolt10; |
7515321 |
US $1.89 |
||
|
5
|
5
4010067
Cable,ground/eng,
|
4010067 |
— | ||
|
6
|
6
7542411 Nut,flexloc(10)10; |
7542411 |
US $5.25 |
||
|
7
|
7
5222415-067
Mount,eng.top
|
5222415-067 |
— | ||
|
8
|
8
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
9
|
9
7575202 Washer lock10; |
7575202 |
US $7.88 |
||
|
10
|
10
5210748 Washer(10)10; |
5210748 |
US $65.60 |
||
|
11
|
11
5430261 Bushing |
5430261 |
US $9.85 |
||
|
14
|
14
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
15
|
15
7080547
Clamp,worm drive
|
7080547 |
— | ||
|
16
|
16
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
17
|
17
3070156 Plug,spark,ngk br8es(10)10; |
3070156 |
US $4.15 |
||
|
18
|
18
4010064
Cable,solenoid/starter
|
4010064 |
— | ||
|
19
|
19
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
20
|
20
5410883 Boot,clutch intake(400)400; |
5410883 |
US $9.85 |
||
|
21
|
21
7553001
Washer springlock
10; |
7553001 |
— | ||
| replacement | |||||
|
21
|
21
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
22
|
22
7512490 Screw10; |
7512490 |
US $3.75 |
||
|
23
|
23
1040231-067
Mount,engine
|
1040231-067 |
— | ||
|
24
|
24
7041079 Spring,hose retainer |
7041079 |
US $6.11 |
||
|
25
|
25
5410606
Hose, lower eng.
|
5410606 |
— | ||
|
27
|
27
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
28
|
28
7052047
Checkvalve,vent
|
7052047 |
— | ||
| replacement | |||||
|
28
|
28
7051011 Valve,check |
7051011 |
US $9.15 |
||
|
29
|
29
5240542-067 Mount, rear motor, blk, |
5240542-067 |
US $20.65 |
||
|
30
|
30
7555801 Washer10; |
7555801 |
US $2.45 |
||
|
31
|
31
7080236 Clamp-hose10;Yellow; |
7080236 |
US $2.45 |
||
|
32
|
32
7080571 Strap,8 in,tyton |
7080571 |
US $3.06 |
||
|
33
|
33
8450042-600
Fuel line,3/16 id(600 cm,)
600 CM.; |
8450042-600 |
— | ||
|
34
|
34
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
