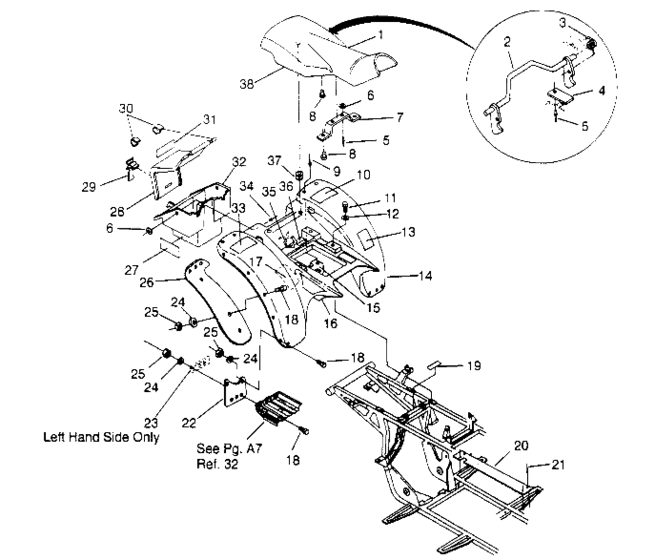

Rear cab assembly (2x4 400L W947540) Diagram Polaris 400L 2X4
- Model code
- W947540
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2681724-143
Seat asm,,lt.gry
ATV; |
2681724-143 |
— | ||
| replacement | |||||
|
1
|
1
2682357-143
Seat asm,lt.gray,
ATV; |
2682357-143 |
— | ||
|
2
|
2
1011558
Latch,seat
|
1011558 |
— | ||
|
3
|
3
7041158 Spring, latch |
7041158 |
US $18.45 |
||
|
4
|
4
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
5
|
5
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
6
|
6
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
7
|
7
5222837-067
Brkt,support seat base
|
5222837-067 |
— | ||
|
8
|
8
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
9
|
9
7621432 Rivet,3/16x,402(50)50; |
7621432 |
US $0.79 |
||
|
10
|
10
7072788 Decal,warn,r.rackNo Longer Available; CPSC; |
7072788 |
US $1.89 |
||
|
11
|
11
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
12
|
12
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
13
|
13
7072810
Decal,tire press
No Longer Available; CPSC;4X4; |
7072810 |
— | ||
|
14
|
14
5431271-136
Cab,rear,red,
350; |
5431271-136 |
— | ||
|
15
|
15
5220880 Brkt,rear holddown |
5220880 |
US $7.09 |
||
|
16
|
16
5810957 FoilInside; |
5810957 |
US $28.58 |
||
|
17
|
17
5810991 Foil,small |
5810991 |
US $9.15 |
||
|
18
|
18
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
19
|
19
7072791
Decal,filter element
No Longer Available; |
7072791 |
— | ||
|
20
|
20
5222860-067
Guard,clutch,outer
|
5222860-067 |
— | ||
|
21
|
21
7661637 Rivet,interlock,z(50) *50; |
7661637 |
US $0.79 |
||
|
22
|
22
5850076
Mudflap,lh,low,rear
|
5850076 |
— | ||
|
22
|
22
5850111
Mudflap,rh,low,rear
|
5850111 |
— | ||
|
23
|
23
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
25
|
25
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
26
|
26
5850089-070
Mudflap,lh,r.blk.
|
5850089-070 |
— | ||
|
26
|
26
5850090-070
Mudflap,rh,r,blk,
|
5850090-070 |
— | ||
|
27
|
27
5810310
Tape, foil
|
5810310 |
— | ||
|
28
|
28
5430769-1020
Lid,toolbox
SIL-P.RED; |
5430769-1020 |
— | ||
|
29
|
29
5410425 Strap,tool compartment |
5410425 |
US $9.15 |
||
|
30
|
30
7670050 Clip, lid hinge10; |
7670050 |
US $1.89 |
||
|
31
|
31
7072805
Decal,pass.wrn.
No Longer Available; CPSC; |
7072805 |
— | ||
|
32
|
32
5430882
Box,tool comp,
|
5430882 |
— | ||
|
33
|
33
7074110 Decal,load dist,(4 whl,)4 WHL.; |
7074110 |
US $18.76 |
||
|
34
|
34
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
35
|
35
7080385
Retainer,tool pouch
|
7080385 |
— | ||
|
36
|
36
7073761 Decal,carb,info, |
7073761 |
US $1.89 |
||
|
37
|
37
5410413
Grommet
|
5410413 |
— | ||
|
38
|
38
2681723-143
Cover,seat,lt.grey
|
2681723-143 |
— | ||
