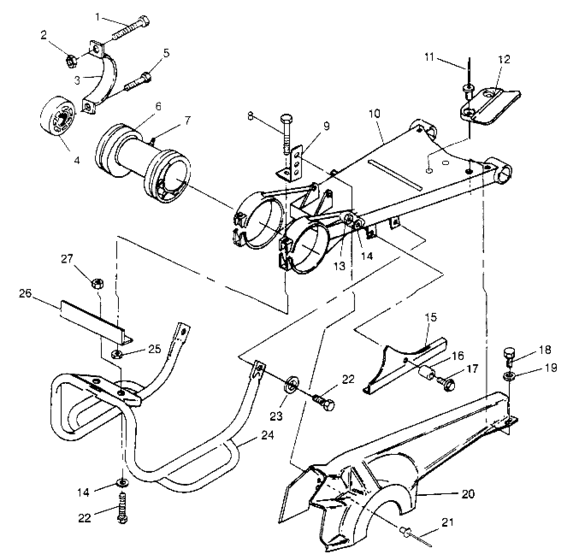

Swing arm/guard mounting (6x6 400L W948740) Diagram Polaris 400L 6X6
- Model code
- W948740
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512569
Bolt
10; |
7512569 |
— | ||
|
2
|
2
7542522 Nut,flange10; |
7542522 |
US $3.75 |
||
|
3
|
3
1580067-067
Weld-brkt, swing arm ext, blk
|
1580067-067 |
— | ||
|
4
|
4
5130945 Housing,swing arm |
5130945 |
US $147.72 |
||
|
5
|
5
7512520
Bolt
10; |
7512520 |
— | ||
|
6
|
6
5130663
Housing, axle
|
5130663 |
— | ||
|
7
|
7
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
|
8
|
8
7512576 Bolt10; |
7512576 |
US $6.69 |
||
|
9
|
9
5222220-067
Brkt,chain guard,blk,
|
5222220-067 |
— | ||
|
11
|
11
7621433 Rivet(50)50; |
7621433 |
US $0.79 |
||
|
12
|
12
5431310 Guide, chain |
5431310 |
US $28.58 |
||
|
13
|
13
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
14
|
14
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
15
|
15
5430952
Guard,chain
MODIFIED; |
5430952 |
— | ||
| replacement | |||||
|
15
|
15
5430776 Guard, chain*MODIFIED; |
5430776 |
US $35.67 |
||
|
16
|
16
5332828 Bushing |
5332828 |
US $7.18 |
||
|
17
|
17
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
18
|
18
7512252
Screw
10; |
7512252 |
— | ||
|
19
|
19
7555776
Washer
10; |
7555776 |
— | ||
| replacement | |||||
|
19
|
19
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
20
|
20
2640009
Guard, chain
|
2640009 |
— | ||
| replacement | |||||
|
20
|
20
5431102
Guard, f,chain
|
5431102 |
— | ||
|
21
|
21
7621301 Rivet(10)50; |
7621301 |
US $1.77 |
||
|
22
|
22
7512325 Bolt10; |
7512325 |
US $5.25 |
||
|
23
|
23
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
24
|
24
1040183-067
Guard, rack
|
1040183-067 |
— | ||
| replacement | |||||
|
24
|
24
1040522-067
Guard,swingarm,blk
|
1040522-067 |
— | ||
|
25
|
25
7542503 Nut,flexlock,10; |
7542503 |
US $9.85 |
||
|
26
|
26
5222221-067 Mount-rock guard brkt, blk |
5222221-067 |
US $11.15 |
||
|
27
|
27
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
