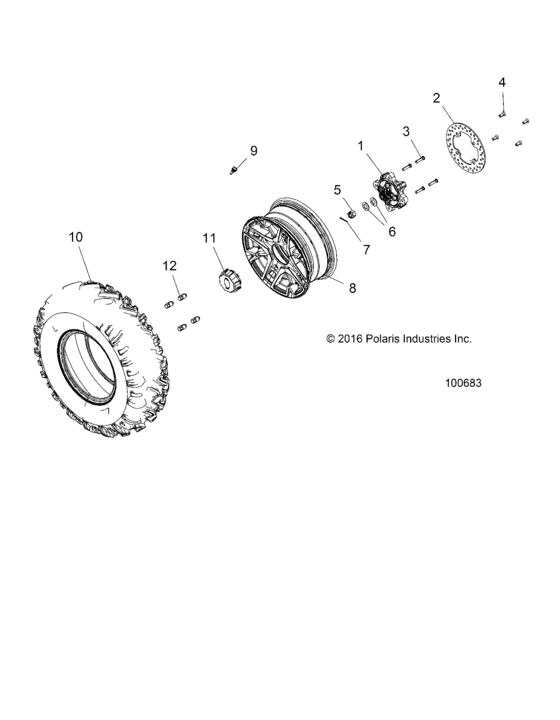

Wheels, Front Tire And Brake Disc (A17DAE57AM (100683)) Diagram Polaris ACE 570 SP
- Model code
- A17DAE57AM
- Year
- 2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5137659-067 Hub-wheel,front(mach),blk |
5137659-067 |
US $118.13 |
||
|
2
|
2
5254999 Disc-brake, front |
5254999 |
US $73.83 |
||
|
3
|
3
7517871 Stud-3/8-24x1,73,prs fit-2 |
7517871 |
US $2.28 |
||
|
4
|
4
7518978 Scr-m10x1,5x20 8,8 txcs fl zod |
7518978 |
US $2.28 |
||
|
5
|
5
7547337 Nut-m18x1,5,castle,zinc/yellow |
7547337 |
US $2.45 |
||
|
6
|
6
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
7
|
7
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
8
|
8
1522484-458 RIM-FRONT,CAST,12X5,SOLID,BLK |
1522484-458 |
US $213.68 |
||
|
9
|
9
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
10
|
10
5413994 Tire-25x8-12 nhs,489 |
5413994 |
US $225.30 |
||
|
11
|
11
1521954-458 CAP-RIM,M BLK |
1521954-458 |
US $35.58 |
||
|
12
|
12
7547309 Nut-3/8-24-wheel |
7547309 |
US $59 |
