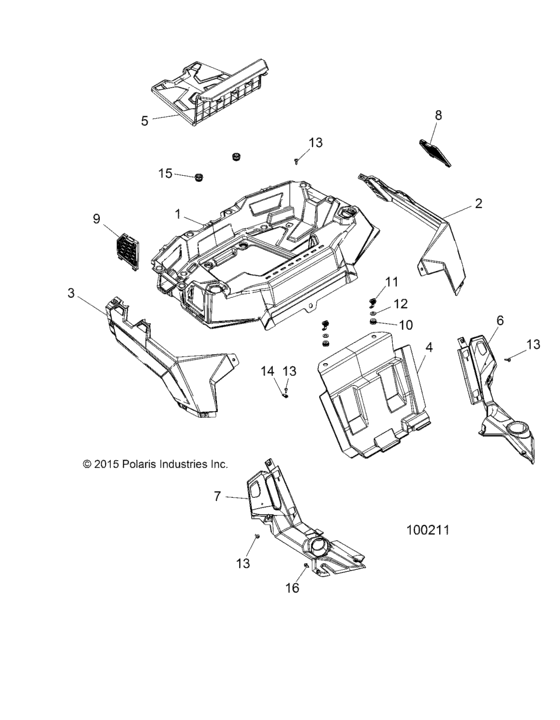

Body, Rear Rack And Fenders (A16DAE87AL (100211)) Diagram Polaris ACE 900 EFI EPS
- Model code
- A16DAE87AL
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5452246-070
Box, Cargo, Rear, Black
|
5452246-070 |
— | ||
|
2
|
2
5451416-464 FENDER-REAR,LH,PNTD,S.BLK |
5451416-464 |
US $146.74 |
||
|
3
|
3
5451417-464 FENDER-REAR,RH,PNTD,S.BLK |
5451417-464 |
US $51.03 |
||
|
4
|
4
5452245-070 PANEL-CLOSE OFF,BLK |
5452245-070 |
US $111.55 |
||
|
5
|
5
5452377-070 BOX-MAINT PANEL,REMOVABLE,BLK |
5452377-070 |
US $72.56 |
||
|
6
|
6
5450299-070 PANEL-UNDERSEAT COVER,LH,BLK |
5450299-070 |
US $56.14 |
||
|
7
|
7
5450589-070
PANEL-UNDERSEAT COVER,RH,BLK
|
5450589-070 |
— | ||
|
8
|
8
5450392-070 GRILL-INTAKE COVER,LH,BLK |
5450392-070 |
US $16.24 |
||
|
9
|
9
5450393-070 GRILL-INTAKE COVER,RH,BLK |
5450393-070 |
US $16.24 |
||
|
10
|
10
5413428 Grommet-latch |
5413428 |
US $1.98 |
||
|
11
|
11
5451143 LATCH-1/4 TURN |
5451143 |
US $23.61 |
||
|
12
|
12
7555919 Washer |
7555919 |
US $6.21 |
||
|
13
|
13
7519650 Scr-txth-m6x1.0x25 rie |
7519650 |
US $1.89 |
||
|
14
|
14
7547674 Nut-m6-1.0,u-type (2.5-3.8) |
7547674 |
US $1.89 |
||
|
15
|
15
5412507 Grommet |
5412507 |
US $9.19 |
||
|
16
|
16
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
