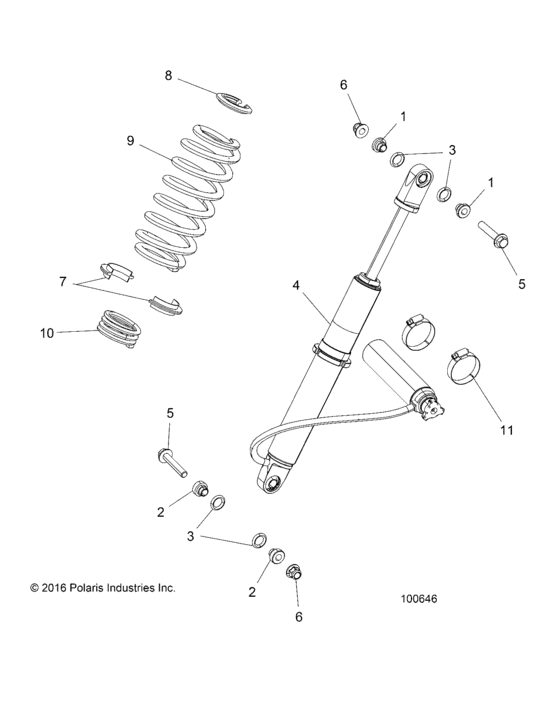

Suspension, Rear Shock Mounting (A17DCE87AU (100646)) Diagram Polaris ACE 900 EPS XC
- Model code
- A17DCE87AU
- Year
- 2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5137876 Bushing-reducer,.500x.398,zyw |
5137876 |
US $9.85 |
||
|
2
|
2
5137877 Bushing-reducer,10mm wide,zyw |
5137877 |
US $6.20 |
||
|
3
|
3
5416057 O-RING,0.591IDX.171,BLK |
5416057 |
US $1.66 |
||
|
4
|
4
7044676 SHOCK-REAR,WE,1.5" |
7044676 |
US $896.14 |
||
|
5
|
5
7519306 Scr-hxfl-m10x1.25x60 10.9 zod |
7519306 |
US $3.94 |
||
|
6
|
6
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
||
|
7
|
7
5436643 Spacer-spring,nylon |
5436643 |
US $2.45 |
||
|
8
|
8
5020618 Retainer,spring,slotted |
5020618 |
US $59.05 |
||
|
9
|
9
7044678-630 SPR-210#,11.05FL,1.88,LM SQZ |
7044678-630 |
US $101.45 |
||
|
10
|
10
7044693-630 SPR-210#,3.06FL,1.88,LM SQZ |
7044693-630 |
US $38.99 |
||
|
11
|
11
7080560 Clamp,hose s,s, |
7080560 |
US $10.34 |
