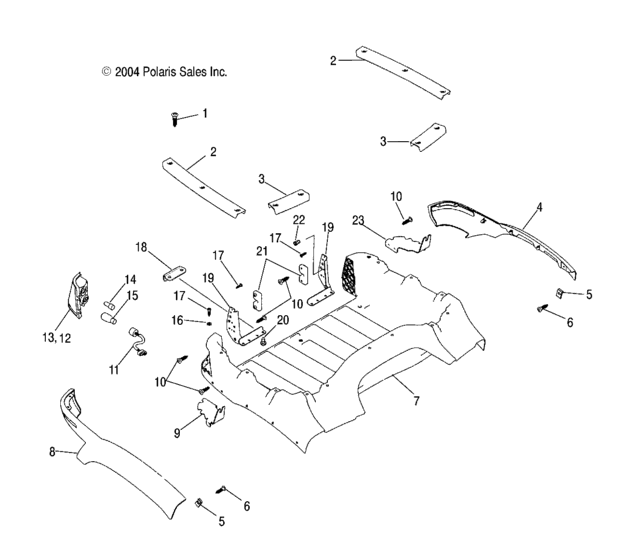

Rear box (A05JD32AA) Diagram Polaris ATP 330 4X4
- Model code
- A05JD32AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518216 Scr-5/16-18x718 tx-m |
7518216 |
US $1.89 |
||
|
2
|
2
5434803-070 Tiedown-side,blk |
5434803-070 |
US $10.83 |
||
|
3
|
3
5434804-070 Tiedown-front,blk |
5434804-070 |
US $20.28 |
||
|
4
|
4
5434801-070
Fender-lh,blk **
|
5434801-070 |
— | ||
|
5
|
5
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
6
|
6
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
7
|
7
5435072-070
Rr,base,svcw/decal,blk
|
5435072-070 |
— | ||
|
8
|
8
5434802-070
Fender-rh,blk **
|
5434802-070 |
— | ||
|
9
|
9
5246932-067 Brkt-rear corner,rh,blk |
5246932-067 |
US $270.20 |
||
|
10
|
10
7515111 Screw |
7515111 |
US $6.69 |
||
|
11
|
11
2461151 Harness-taillight |
2461151 |
US $36.80 |
||
|
12
|
12
2410372
Asm., taillight housing, lh
|
2410372 |
— | ||
|
12
|
12
2410373
Asm., taillight housing, rh
|
2410373 |
— | ||
|
13
|
13
2410355
Asm-taillight,rh
Incl. 12-14; If built before 8/14/04; |
2410355 |
— | ||
|
13
|
13
2410486
Asm-taillight,ece,lh
Incl. 12-14; If built after 8/14/04; |
2410486 |
— | ||
|
13
|
13
2410487
Asm-taillight,ece,rh
Incl. 12-14; If built after 8/14/04; |
2410487 |
— | ||
|
13
|
13
2410354
Asm-taillight,lh
Incl. 12-14; If built before 8/14/04; |
2410354 |
— | ||
|
14
|
14
4030015 Bulb taillight/tach/speedo (10) |
4030015 |
US $46.40 |
||
|
15
|
15
4030050
Bulb, dash
|
4030050 |
— | ||
| replacement | |||||
|
15
|
15
4030024 Bulb,taillight(10) |
4030024 |
US $3.64 |
||
|
16
|
16
7556288 Wshr-fl#10 ,203x,438x,032-y |
7556288 |
US $1.89 |
||
|
17
|
17
7518238
Scr-10x5/8-hi/lo,pn-t25,trx-m
|
7518238 |
— | ||
|
18
|
18
5247965-067 Tiedown-blk |
5247965-067 |
US $16.24 |
||
|
19
|
19
1014249-067 Weld-tailgate support,lh,blk |
1014249-067 |
US $56.14 |
||
|
19
|
19
1014250-067 Weld-tailgate support,rh,blk |
1014250-067 |
US $56.14 |
||
|
20
|
20
7512098 Screw (10) * |
7512098 |
US $1.89 |
||
|
21
|
21
7081099 Latch-slam,tailgate |
7081099 |
US $29.54 |
||
|
22
|
22
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
23
|
23
5246931-067 Brkt-rear corner,lh,blk |
5246931-067 |
US $284.01 |
||
