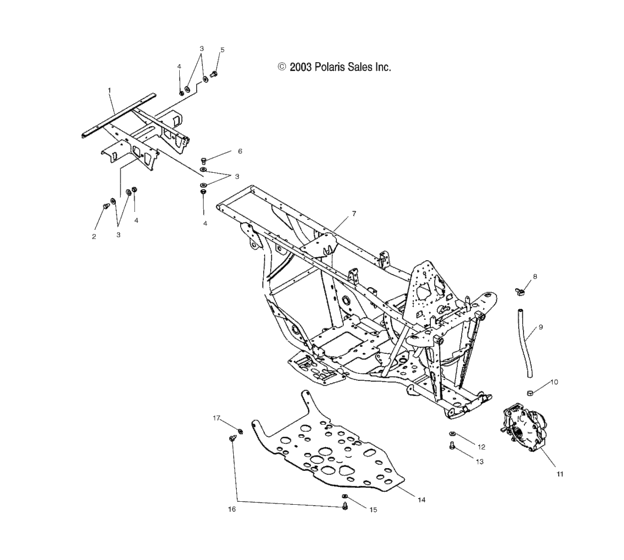

Frame extension and main frame (A04JD32AA) Diagram Polaris ATP 330 4X4
- Model code
- A04JD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1013839-067
Weld-frame extension,blk
|
1013839-067 |
— | ||
|
2
|
2
7515317 Bolt |
7515317 |
US $3.26 |
||
|
3
|
3
7555960 Washer,flat |
7555960 |
US $5.25 |
||
|
4
|
4
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
5
|
5
7512329 Bolt |
7512329 |
US $4.59 |
||
|
6
|
6
7515319 Bolt |
7515319 |
US $3.26 |
||
|
7
|
7
1014293-067
Weld-main frame,srs,blk
|
1014293-067 |
— | ||
|
8
|
8
7670102 Clip |
7670102 |
US $5.25 |
||
|
9
|
9
8450003
Line, fuel
|
8450003 |
— | ||
|
10
|
10
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
11
|
11
1341344
Asm., gearcase, front
|
1341344 |
— | ||
|
12
|
12
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
13
|
13
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
14
|
14
5435005
Guard-rock **
|
5435005 |
— | ||
|
15
|
15
7556065 Washer |
7556065 |
US $6.69 |
||
|
16
|
16
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
17
|
17
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
