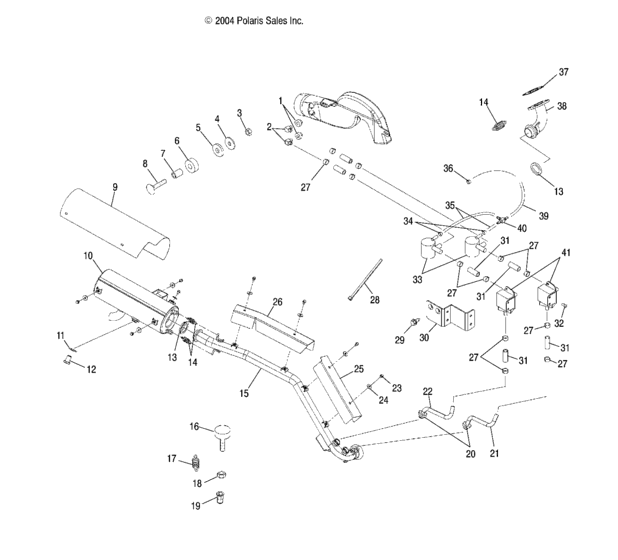

Exhaust system (A05JD32EA) Diagram Polaris ATP 330 4X4 QUAD
- Model code
- A05JD32EA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5412802 Grommet-1/2",nitrile |
5412802 |
US $9.07 |
||
|
2
|
2
7052383 Fitting-1/2",90? elbow |
7052383 |
US $17.54 |
||
|
3
|
3
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
4
|
4
7555716 Washer |
7555716 |
US $2.45 |
||
|
5
|
5
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
6
|
6
5412233
Dampener, vibration
|
5412233 |
— | ||
|
7
|
7
5010192 Bushing |
5010192 |
US $4.94 |
||
|
8
|
8
7515316 Bolt |
7515316 |
US $2.98 |
||
|
9
|
9
5249082-029 Shield-silencer,blk |
5249082-029 |
US $86.26 |
||
|
10
|
10
1261432-029
Weld-silencer,blk
|
1261432-029 |
— | ||
|
11
|
11
7556230 Washer-clean out ,51x,75x,09 (1 |
7556230 |
US $0.79 |
||
|
12
|
12
7512666 Bolt |
7512666 |
US $3.75 |
||
|
13
|
13
5243517 Seal,exhaust |
5243517 |
US $18.73 |
||
|
14
|
14
7041804 Spring |
7041804 |
US $9.85 |
||
|
15
|
15
1261489
Headpipe
|
1261489 |
— | ||
|
16
|
16
3110064
Mount, torque stop
|
3110064 |
— | ||
|
17
|
17
7041687 Spring |
7041687 |
US $7.88 |
||
|
18
|
18
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
19
|
19
7547101 Nutsert-5/16-18(,027-,150),hxy |
7547101 |
US $7.68 |
||
|
20
|
20
7547298
Nut-7/8-18,5/8 flare 45*invert
|
7547298 |
— | ||
|
21
|
21
1261476 Asm-ss tube,air injection,fr |
1261476 |
US $42.53 |
||
|
22
|
22
1261475 Ss tube asm,air injection,rr |
1261475 |
US $38.99 |
||
|
23
|
23
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
24
|
24
7555935 Washer |
7555935 |
US $3.26 |
||
|
25
|
25
5248889 Shield-exhaust,heat,front |
5248889 |
US $17.10 |
||
|
26
|
26
5249098 Shield-headpipe,heat,mid |
5249098 |
US $21.35 |
||
|
27
|
27
7080810 Clamp-3 tong ,810-,970 |
7080810 |
US $2.98 |
||
|
28
|
28
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
29
|
29
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
30
|
30
5248890-067 Brkt-air valve mnt,blk |
5248890-067 |
US $10.97 |
||
|
31
|
31
5412724-50 Hose-1/2"heater,hi temp-50 cm |
5412724-50 |
US $4.73 |
||
|
32
|
32
7511909 Screw |
7511909 |
US $2.45 |
||
|
33
|
33
2520457
Filter-air valve
|
2520457 |
— | ||
|
34
|
34
7081265
Clamp-5/16" id
|
7081265 |
— | ||
|
35
|
35
8450061-600 Line,fuel,3mmx7mm |
8450061-600 |
US $51.21 |
||
|
36
|
36
7080603 Clamp |
7080603 |
US $2.45 |
||
|
37
|
37
3086237
Gasket, exhaust
|
3086237 |
— | ||
|
38
|
38
1261490 Weld-manifold,325,ss |
1261490 |
US $71.89 |
||
|
39
|
39
8450037
Line
|
8450037 |
— | ||
| replacement | |||||
|
39
|
39
8450037-600 Fuel line,3/16 id(600 cm,) |
8450037-600 |
US $79.35 |
||
|
40
|
40
7052386 Fitting-t,3/16x1/8x3/16 |
7052386 |
US $8.66 |
||
|
41
|
41
1261439
Asm-air valve,cat
|
1261439 |
— | ||
