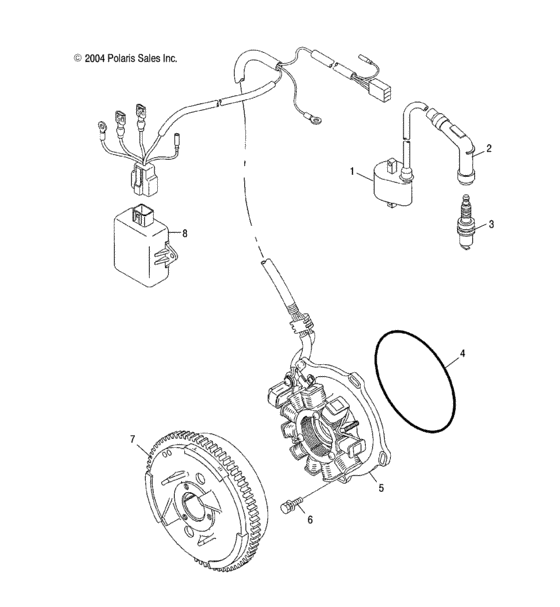

Magneto (A05JD32EA) Diagram Polaris ATP 330 4X4 QUAD
- Model code
- A05JD32EA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3087036 Asm-ignition coilIncl. 2; |
3087036 |
US $162.51 |
||
|
2
|
2
3087037 Cap-spark plug * |
3087037 |
US $34.67 |
||
|
3
|
3
3070172 Spark plug,bkr6e (4) |
3070172 |
US $3.50 |
||
|
4
|
4
3084978 O-ring |
3084978 |
US $24.43 |
||
|
5
|
5
3084973 Seal, oil |
3084973 |
US $35.12 |
||
|
5
|
5
3089275
Asm,stator plate
|
3089275 |
— | ||
|
6
|
6
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
7
|
7
3089717 Flywheel |
3089717 |
US $544.57 |
||
|
8
|
8
3089718
Cdi system
|
3089718 |
— |
