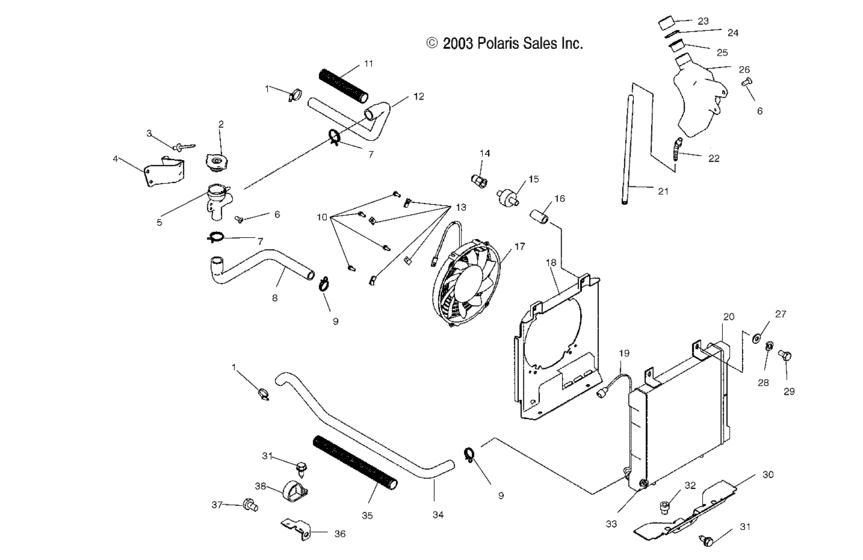

Cooling system (A04JD50AA/AB/CA) Diagram Polaris ATP 500 4X4
- Model code
- A04JD50AA/AB/CA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080696 Clamp,hose,1,25,worm drive |
7080696 |
US $3.94 |
||
|
2
|
2
1240044
Cap, pressure
|
1240044 |
— | ||
|
3
|
3
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
4
|
4
5243505
Brkt-remote coolant fill pltd
|
5243505 |
— | ||
|
5
|
5
5433364 Filler-remote coolant |
5433364 |
US $34.25 |
||
|
6
|
6
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
7
|
7
7080827
Clamp-roto spring 1"
|
7080827 |
— | ||
|
8
|
8
5411632 Hose,filler neck |
5411632 |
US $43.72 |
||
|
9
|
9
7080826 Clamp-roto clip |
7080826 |
US $2.98 |
||
|
10
|
10
7517659 Screw |
7517659 |
US $1.89 |
||
|
11
|
11
5433948
Flexguard-plastic guard
|
5433948 |
— | ||
|
12
|
12
5411794
Hose,upper engine
|
5411794 |
— | ||
|
13
|
13
7670111 Clip,u |
7670111 |
US $2.70 |
||
|
14
|
14
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
15
|
15
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
16
|
16
5132648 Spacer-mount,radiator |
5132648 |
US $9.85 |
||
|
17
|
17
2410123 Fan&motor,asm,spal |
2410123 |
US $267.05 |
||
|
18
|
18
5433059
Shroud-fan
|
5433059 |
— | ||
|
19
|
19
4010161 Sensor-thermal/harness |
4010161 |
US $93.56 |
||
|
20
|
20
1240045
Radiator
|
1240045 |
— | ||
|
21
|
21
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
22
|
22
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
23
|
23
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
24
|
24
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
25
|
25
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
26
|
26
5433410 Tank,surge |
5433410 |
US $65.99 |
||
|
27
|
27
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
28
|
28
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
29
|
29
7512240 Bolt |
7512240 |
US $2.45 |
||
|
30
|
30
5244687-067
Brkt,radiator,lower,blk
|
5244687-067 |
— | ||
|
31
|
31
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
32
|
32
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
33
|
33
7052296
Valve-plastic drain
|
7052296 |
— | ||
|
33
|
33
5411633
O-ring
|
5411633 |
— | ||
|
34
|
34
5411694
Hose,lower engine
|
5411694 |
— | ||
|
35
|
35
5521511 Guard-hose,12" |
5521511 |
US $9.15 |
||
|
36
|
36
5247346 Brkt-coolant hose mnt,pltd |
5247346 |
US $14.28 |
||
|
38
|
38
7080851
Clamp, hose
|
7080851 |
— | ||
| replacement | |||||
|
38
|
38
7080908 Clamp,hose 1,375,vnl ecoated |
7080908 |
US $6.69 |
||
