	Description	OEM Part #	Price
1	1 2461173 Harness, main If built before 8/01/03;	2461173	—
1	1 2461228 Harness-main,500 atp 04my If built after 8/01/03;	2461228	US $448.09
1	1 2202147 Kit-fusible link	2202147	US $41.35
2	2 4010924 Module-resistor	4010924	—
3	3 2410323 Breaker-circut,20 amp	2410323	US $47.67
4	4 2410394 Breaker-circut,10 amp	2410394	US $47.67
5	5 7080138 Cable tie (10)	7080138	US $26.30
6	6 7080965 Mount-cable tie,,25 If built before 7/01/03;	7080965	US $4.34
7	7 4020139 Clip,rosebud	4020139	US $3.26
8	8 7512242 Screw(10)	7512242	US $0.79
9	9 7555859 Washer, flat(10)	7555859	US $39.40
10	10 5247373-067 Strap-battery,blk	5247373-067	—
11	11 5810317 Pad	5810317	—
	replacement
11	11 8360026 Pad,bulk fuel	8360026	—
12	12 2200361 Kit-battery bolt (short)	2200361	US $1.77
13	13 4010774 Battery-14ah,sealed,charged	4010774	US $135.40
14	14 4010955 Cable-20",battery/solenoid,red	4010955	US $18.32
15	15 7512018 Screw(10)	7512018	US $0.79
16	16 7541925 Nut, nylok 10-24 y	7541925	—
17	17 7571602 Washer	7571602	US $2.45
18	18 7512007 Bolt	7512007	US $2.45
19	19 5812563 Pad-adhesive If built before 8/01/03;	5812563	US $1.66
20	20 5246378 Brkt-cdi,digital	5246378	US $6.11
21	21 7512024 Screw	7512024	US $2.45
22	22 4010670 Rectifier, regulator	4010670	—
23	23 5131036 Heatsink rect,	5131036	—
24	24 7512018 Screw(10)	7512018	US $0.79
25	25 5810317 Pad	5810317	—
	replacement
25	25 8360026 Pad,bulk fuel	8360026	—
26	26 4010961 Control-differential lock,lr64	4010961	—
27	27 8360012-10 Trim, edge	8360012-10	—

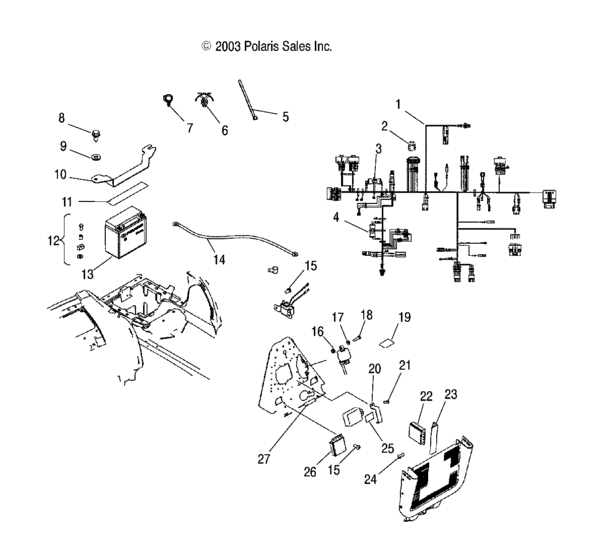

Electrical/taillight (A04JD50AA/AB/CA) Diagram Polaris ATP 500 4X4 General 1513111-150409
