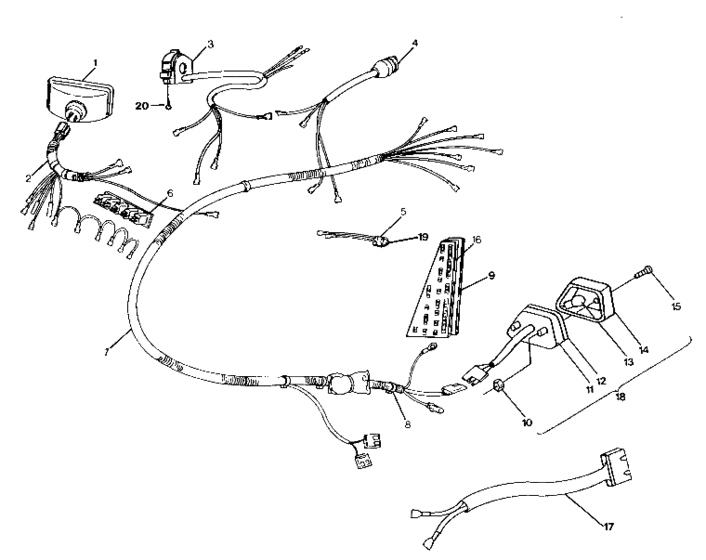

Wiring harness (4x6 / W928627; 250) Diagram Polaris BIG BOSS 4X6
- Model code
- W928627
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032038
Headlight asm,
|
4032038 |
— | ||
|
2
|
2
2460283
Harness, headlight
|
2460283 |
— | ||
| replacement | |||||
|
2
|
2
2460427
Harness,headlight
|
2460427 |
— | ||
|
3
|
3
4110095
Switch,hi/lo/st.
|
4110095 |
— | ||
| replacement | |||||
|
3
|
3
4110157
Switch,lh,h'bar(atv)
|
4110157 |
— | ||
|
4
|
4
4110086
Switch,ign.
MODIFIED; |
4110086 |
— | ||
| replacement | |||||
|
4
|
4
4110140 Switch, ignitionMODIFIED; |
4110140 |
US $118.18 |
||
|
5
|
5
4110083 Sw,o'ride,rev,limit, |
4110083 |
US $44.33 |
||
|
6
|
6
4032037 Strip, socket |
4032037 |
US $33.50 |
||
|
7
|
7
2460279
Harness,main wire
|
2460279 |
— | ||
| replacement | |||||
|
7
|
7
2460403
Harness, main wire
|
2460403 |
— | ||
|
8
|
8
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
9
|
9
5431152
Shield,term.board
|
5431152 |
— | ||
|
10
|
10
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
11
|
11
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
12
|
12
4032045 Gasket |
4032045 |
US $5.11 |
||
|
13
|
13
4030043 Bulb |
4030043 |
US $4.94 |
||
|
14
|
14
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
15
|
15
4032029 Screw |
4032029 |
US $2.98 |
||
|
16
|
16
4040022
Board,terminal
|
4040022 |
— | ||
|
17
|
17
2460346
Harness, main wire
|
2460346 |
— | ||
| replacement | |||||
|
17
|
17
2460404
Harness, main wire,
|
2460404 |
— | ||
|
18
|
18
2432034 Tail light asm, |
2432034 |
US $51.21 |
||
|
19
|
19
7080379
Boot, o`ride sw.
|
7080379 |
— | ||
|
20
|
20
2010055
Screw
|
2010055 |
— | ||
