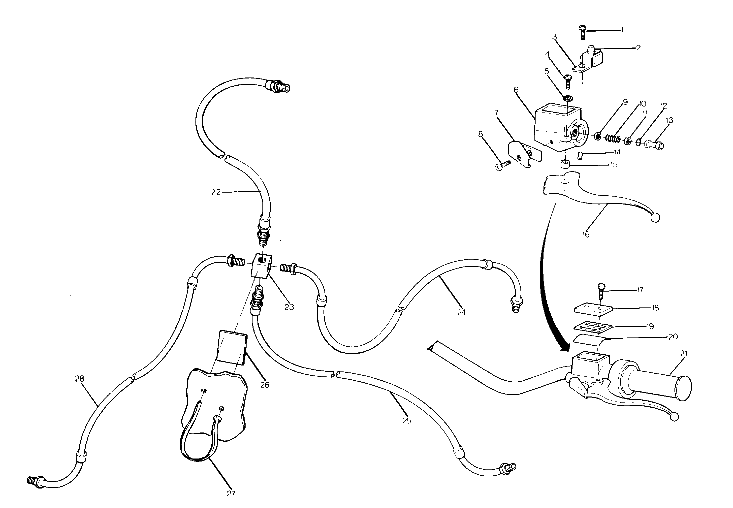

Control assembly l.h. Diagram Polaris BIG BOSS 4X6
- Model code
- X898627
- Year
- 1989
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7511860
Screw, sems
10; |
7511860 |
— | ||
|
2
|
2
4110083 Sw,o'ride,rev,limit, |
4110083 |
US $44.33 |
||
|
3
|
3
5220837
Brkt.,o`ride sw.
|
5220837 |
— | ||
|
4
|
4
7512011
Screw
10; |
7512011 |
— | ||
|
5
|
5
7555780
Washer,tooth-lock
10; |
7555780 |
— | ||
|
6
|
6
5630312
Housing,master cyl.
|
5630312 |
— | ||
| replacement | |||||
|
6
|
6
2050073 Master cylinder |
2050073 |
US $306.22 |
||
|
7
|
7
2050040
Brake lock asm.
|
2050040 |
— | ||
|
8
|
8
7512010
Screw, sems
10; |
7512010 |
— | ||
|
9
|
9
7555708 Washer10; |
7555708 |
US $2.45 |
||
|
10
|
10
7041203 Spring,compression,(10)10; |
7041203 |
US $18.66 |
||
|
11
|
11
5410164 U packing seal |
5410164 |
US $4.73 |
||
|
12
|
12
5410163 O ring (10) |
5410163 |
US $2.28 |
||
|
13
|
13
5020511
Piston
|
5020511 |
— | ||
|
14
|
14
7512308
Screw,set
10; |
7512308 |
— | ||
|
15
|
15
5332892
Bushing
|
5332892 |
— | ||
|
16
|
16
5610106 Lever, brake |
5610106 |
US $34.67 |
||
|
17
|
17
7511859
Screw, sems
10; |
7511859 |
— | ||
|
18
|
18
5630127 Cover reservoir |
5630127 |
US $65.35 |
||
|
19
|
19
5410487
Gasket
|
5410487 |
— | ||
|
20
|
20
5410512
Baffle,master cyl,
|
5410512 |
— | ||
|
21
|
21
5410416
Grip, handle bar
|
5410416 |
— | ||
| replacement | |||||
|
21
|
21
5431030
Grip, handlebar
|
5431030 |
— | ||
|
21
|
21
5431025
Grip, handlebar
|
5431025 |
— | ||
|
22
|
22
1930633
Line,brake,up.,w/ftgs.
|
1930633 |
— | ||
| replacement | |||||
|
22
|
22
1930748 Line,brake,up,/ftgs, |
1930748 |
US $88.64 |
||
|
23
|
23
7052044
Fitting, tee
|
7052044 |
— | ||
|
24
|
24
1930632
Line,brake,r.,w/ftgs.
|
1930632 |
— | ||
|
25
|
25
1930631
Line,brake,lh.frt,w/ftgs.
|
1930631 |
— | ||
| replacement | |||||
|
25
|
25
1930752 Line,brake,lh,fr,w/fittings |
1930752 |
US $88.64 |
||
|
26
|
26
5850040
Pad,gas tank
No Longer Available; |
5850040 |
— | ||
|
27
|
27
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
28
|
28
1930634
Line,brake,rh frt.
|
1930634 |
— | ||
| replacement | |||||
|
28
|
28
1930753 Line,brake,rh,fr,w/fittings |
1930753 |
US $88.64 |
||
