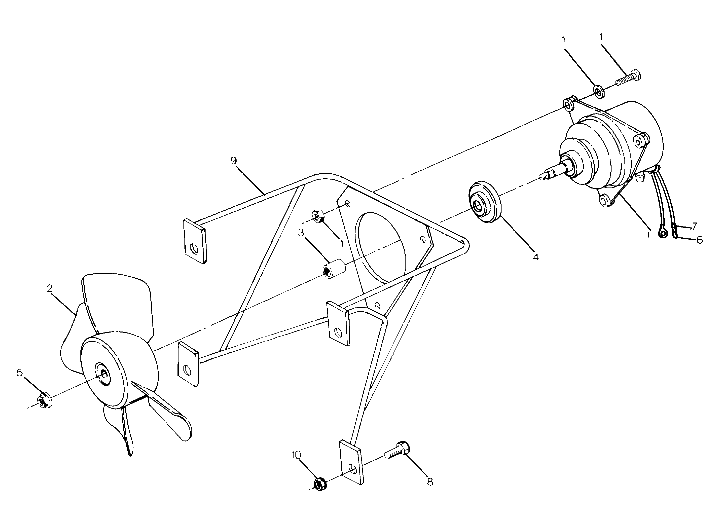

Fan assembly Diagram Polaris BIG BOSS 4X6
- Model code
- X898627
- Year
- 1989
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083948
Motor
|
3083948 |
— | ||
| replacement | |||||
|
1
|
1
4170008
Motor,fan,air-cooled
|
4170008 |
— | ||
|
2
|
2
3083949
Fan blade
|
3083949 |
— | ||
|
3
|
3
3083950
Bushing
|
3083950 |
— | ||
|
4
|
4
3083951
Cover
|
3083951 |
— | ||
|
5
|
5
3083952
Nut (10)
|
3083952 |
— | ||
|
6
|
6
4020142
Pin, connector
|
4020142 |
— | ||
|
7
|
7
5521210
Tube
|
5521210 |
— | ||
|
8
|
8
7512113 Bolt10; |
7512113 |
US $2.45 |
||
|
9
|
9
1040188
Mount, fan
|
1040188 |
— | ||
| replacement | |||||
|
9
|
9
1040188-067
Mount, fan, blk.
|
1040188-067 |
— | ||
|
10
|
10
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
