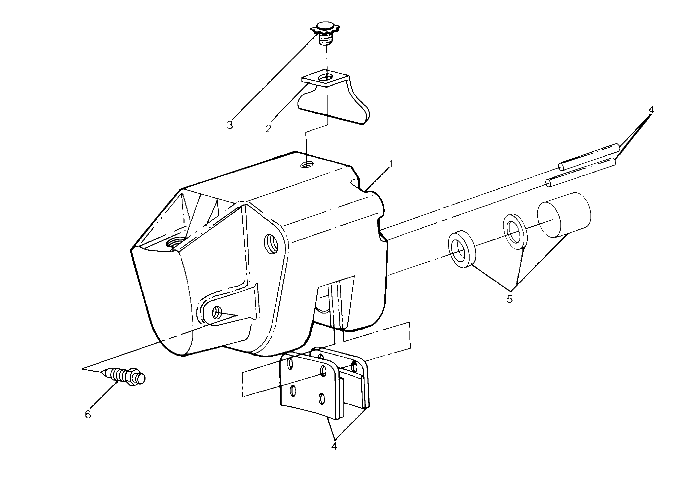

Rear brake assembly Diagram Polaris BIG BOSS 4X6
- Model code
- X898627
- Year
- 1989
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5130713
Caliper, brake, rear
4X6; |
5130713 |
— | ||
|
2
|
2
5220835
Bracket
|
5220835 |
— | ||
|
3
|
3
7511953
Screw
10; |
7511953 |
— | ||
| replacement | |||||
|
3
|
3
7512048 Screw10; |
7512048 |
US $2.45 |
||
|
4
|
4
1930644
Kit,pad,r.brake
Incl. Pads and Pins; |
1930644 |
— | ||
| replacement | |||||
|
4
|
4
2200464 Kit,rear,brakepad,med,dutyIncl. Pads and Pins; |
2200464 |
US $39.39 |
||
|
5
|
5
1930645
Kit,r.seals&piston
Cannot Purchase as Assembly; |
1930645 |
— | ||
|
6
|
6
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
