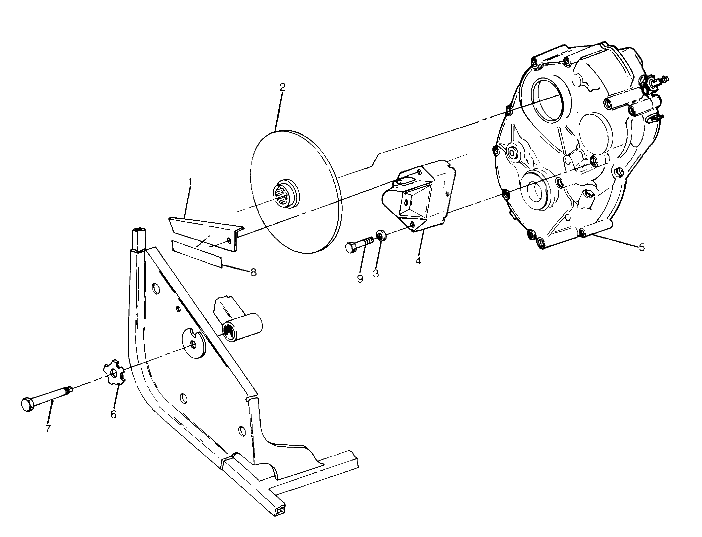

Right hand gearcase and brake mounting Diagram Polaris BIG BOSS 4X6

Model code
X898627
Year
1989
Sales region
General

Difficulties in parts search?

Parts list
Right hand gearcase and brake mounting

Difficulties in parts search?

Right hand gearcase and brake mounting
Description OEM Part # Price
1
1
5240117
Cover,brake disc

5240117

replacement
1
1
5222563-067
Cover,brake disc.

5222563-067

2
2
1910021
Disc, brake

1910021

replacement
2
2
1910087
Disc, brake

1910087

3
3

7558402

Washer,flat(10)

10;

7558402

US $18.70

US $18.70

4
4
1910047
Caliper, r.brake

Complete;

1910047

5
5
3231556
Gearcase asm.

No Longer Available;

3231556

5
5
8570044
Grease,multi-purpose

8570044

replacement
5
5
2870577
New Genuine Part

2870577

6
6

5220958

Plate,bolt lock

5220958

US $24.43

7
7

7512701

Bolt, shoulder

7512701

US $14.09

7
7

7512702

Bolt, shoulder

7512702

US $15.26

8
8
7072603
Decal,clutch cover

No Longer Available;

7072603

9
9

7515345

Bolt

10;

7515345

US $3.94
