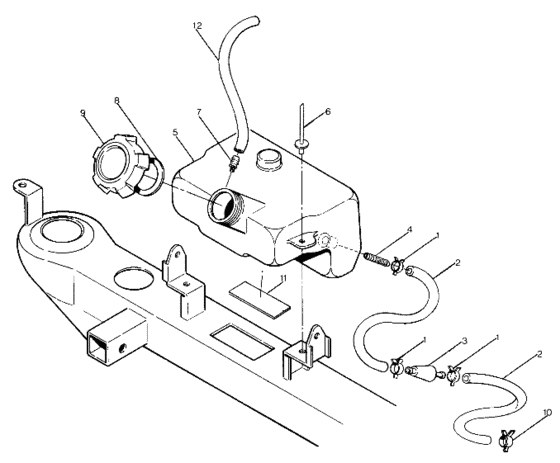

Oil tank assembly Diagram Polaris BIG BOSS 4X6
- Model code
- W908627
- Year
- 1990
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080307 Clamp,hose(10)10; |
7080307 |
US $0.79 |
||
|
2
|
2
2870563
Fuel line-50ft.pkg.
|
2870563 |
— | ||
| replacement | |||||
|
2
|
2
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
3
|
3
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
4
|
4
7052023 Fitting - outlet(10)10; |
7052023 |
US $16.24 |
||
|
5
|
5
5430969
Tank,oil
|
5430969 |
— | ||
|
6
|
6
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
7
|
7
5430579 Vent-tank |
5430579 |
US $46.90 |
||
|
8
|
8
5810141 Gasket-oil cap |
5810141 |
US $2.66 |
||
|
9
|
9
5430779 Cap,oil tank |
5430779 |
US $14.28 |
||
|
10
|
10
7080374
Clamp, hose
|
7080374 |
— | ||
| replacement | |||||
|
10
|
10
7080684
Clamp
|
7080684 |
— | ||
|
11
|
11
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
11
|
11
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
12
|
12
5521087
Line,vent,
38.0``; |
5521087 |
— | ||
| replacement | |||||
|
12
|
12
8360009-600 Line,fuel,1/8 id,600 cm,38.0``; |
8360009-600 |
US $27.39 |
||
