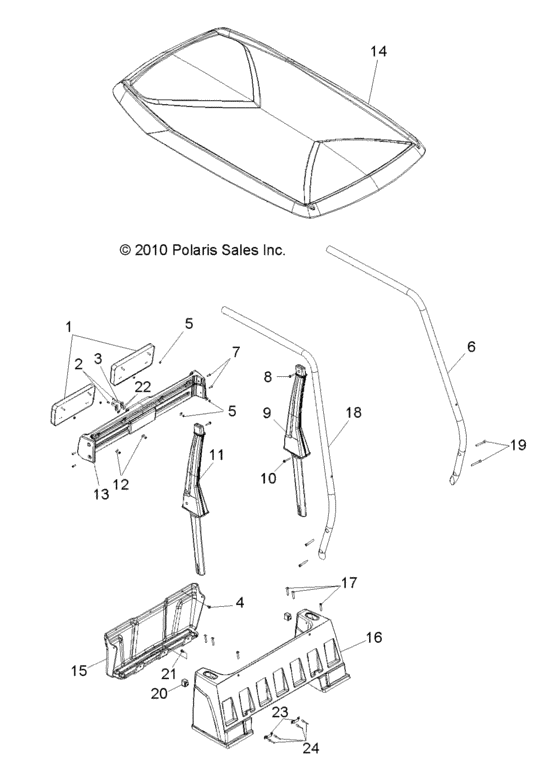

Body, canopy (L10AA08PA/PB/PC) Diagram Polaris BREEZE
- Model code
- L10AA08PA/PB/PC
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2684343
Cushion-seat back,rear
|
2684343 |
— | ||
|
1
|
1
2684425 Asm., cover, seat back, rear |
2684425 |
US $39.67 |
||
|
2
|
2
7519000 Scr-btnhd,m6x12,0600095 |
7519000 |
US $0.93 |
||
|
3
|
3
1017263 Weld-seat latch |
1017263 |
US $11.73 |
||
|
4
|
4
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
5
|
5
7546704
Nut, nylok, ss,
|
7546704 |
— | ||
|
6
|
6
1016933-588 Pillar, a, lh, boston grayBuilt 3/21/10 and Before;PA; |
1016933-588 |
US $79.28 |
||
|
6
|
6
1016933-521
Wld-pillar,a,lh,ewb
Built 3/22/10 and After; |
1016933-521 |
— | ||
|
7
|
7
7517644 Screw |
7517644 |
US $3.94 |
||
|
8
|
8
7517521
Screw
|
7517521 |
— | ||
|
9
|
9
5438009-588 Pillar-b,upr,lh,boston greyBuilt 3/21/10 and Before;PA; |
5438009-588 |
US $165.13 |
||
|
9
|
9
5438009-070
Pillar-b,upr,lh,blk
Built 3/22/10 and After; |
5438009-070 |
— | ||
|
10
|
10
7519174 Scr-txph-m6x1,0x45 ss |
7519174 |
US $4.48 |
||
|
11
|
11
5438162-070
Pillar-b,upr,rh,blk
Built 3/22/10 and After; |
5438162-070 |
— | ||
|
11
|
11
5438162-588 Pillar-b,upr,rh,boston greyBuilt 3/21/10 and Before;PA; |
5438162-588 |
US $76.34 |
||
|
12
|
12
7556094 Washer |
7556094 |
US $2.45 |
||
|
13
|
13
5438196-588
Base-mount,seat back,rr,b,grey
Built 3/21/10 and Before;PA; |
5438196-588 |
— | ||
|
13
|
13
5438196-070 Base-mount,seat back,rear,blkBuilt 3/22/10 and After; |
5438196-070 |
US $50.72 |
||
|
14
|
14
5438010-133
Canopy,b,white
|
5438010-133 |
— | ||
|
15
|
15
5438297 Tub-sweater bskt,secondary |
5438297 |
US $86.26 |
||
|
16
|
16
5437990-588 Pillar-b,lwr,boston greyBuilt 3/21/10 and Before;PA; |
5437990-588 |
US $81.24 |
||
|
16
|
16
5437990-070 Pillar-b,lwr,blkBuilt 3/22/10 and After; |
5437990-070 |
US $63.53 |
||
|
17
|
17
7519225 Screw |
7519225 |
US $2.10 |
||
|
18
|
18
1016934-521
Wld-pillar,a,rh,ewb
Built 3/22/10 and After; |
1016934-521 |
— | ||
|
18
|
18
1016934-588 Pillar, a, rh, boston grayBuilt 3/21/10 and Before;PA; |
1016934-588 |
US $79.28 |
||
|
19
|
19
7518686 Scr-sochd,m8x60,0600084 |
7518686 |
US $3.75 |
||
|
20
|
20
5521765 Bumper-leg fairing |
5521765 |
US $2.28 |
||
|
21
|
21
7670090 Clip,plastic dart,nylon(10) |
7670090 |
US $39.40 |
||
|
22
|
22
7556094 Washer |
7556094 |
US $2.45 |
||
|
23
|
23
5253596 Bracket, cushion mount |
5253596 |
US $4.15 |
||
|
24
|
24
7661986
Rivet-1/8(0-,375),alum,lsr
|
7661986 |
— |
