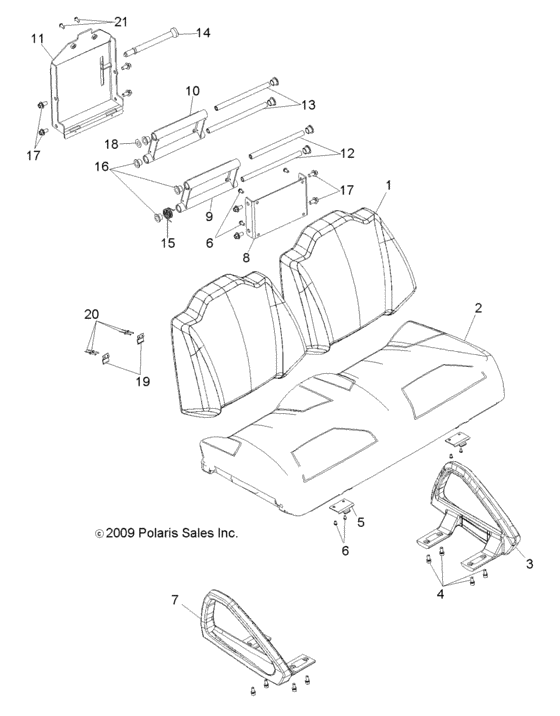

Body, seat, front (L10AA08PA/PB/PC) Diagram Polaris BREEZE
- Model code
- L10AA08PA/PB/PC
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2684325
Asm-seat back,front
Incl. 19,20; |
2684325 |
— | ||
|
1
|
1
2684427 Asm., cover, seat back, front |
2684427 |
US $158.73 |
||
|
2
|
2
2684324
Seat- btm,front
Incl. 5,6; |
2684324 |
— | ||
|
2
|
2
2684366
Asm., cover, seat bottom, front
|
2684366 |
— | ||
|
3
|
3
5438007-588
Rail-hand,seat,lh,boston gray
Built 3/21/10 and Before;PA; |
5438007-588 |
— | ||
|
3
|
3
5438007-070 Rail-hand,seat,lh,blkBuilt 3/22/10 and After; |
5438007-070 |
US $146.51 |
||
|
4
|
4
7517555 Screw,hxsoc |
7517555 |
US $7.68 |
||
|
5
|
5
5253052 Plate, hinge, upper |
5253052 |
US $29.28 |
||
|
6
|
6
7517406 Screw |
7517406 |
US $3.26 |
||
|
7
|
7
5438008-588 Rail-hand,seat,rh,boston grayBuilt 3/21/10 and Before;PA; |
5438008-588 |
US $71.38 |
||
|
7
|
7
5438008-070 Rail-hand,seat,rh,blkBuilt 3/22/10 and After; |
5438008-070 |
US $146.51 |
||
|
8
|
8
5253424-067 Plate-mount,seat back,blk |
5253424-067 |
US $15.26 |
||
|
9
|
9
1017198-067 Weld-hinge pivot,lower,blk |
1017198-067 |
US $30.54 |
||
|
10
|
10
1017336-067 Weld-upper hinge,blk |
1017336-067 |
US $38.41 |
||
|
11
|
11
1017196-067
Weld-mount,plate,b pillar,blk
|
1017196-067 |
— | ||
|
12
|
12
5336221 Tube-upper,threaded |
5336221 |
US $5.60 |
||
|
13
|
13
5336222 Tube-lower,threaded |
5336222 |
US $5.60 |
||
|
14
|
14
7081629 Plunger-spring,seat |
7081629 |
US $50.72 |
||
|
15
|
15
7043606 Spring-torsion |
7043606 |
US $3.06 |
||
|
16
|
16
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
17
|
17
7518043 Scr-hexflghd,m8x16,0600086 |
7518043 |
US $7.68 |
||
|
18
|
18
7556236 Wshr-fl,17x2,5 |
7556236 |
US $5.22 |
||
|
19
|
19
5253556
Bracket, seat mount, front
|
5253556 |
— | ||
|
20
|
20
7661108 Rivet-pop,1/8(,126-,375)al-al(5 |
7661108 |
US $1.49 |
||
|
21
|
21
7519184 Scr-txth-m6x1,0x20 ss |
7519184 |
US $4.48 |
