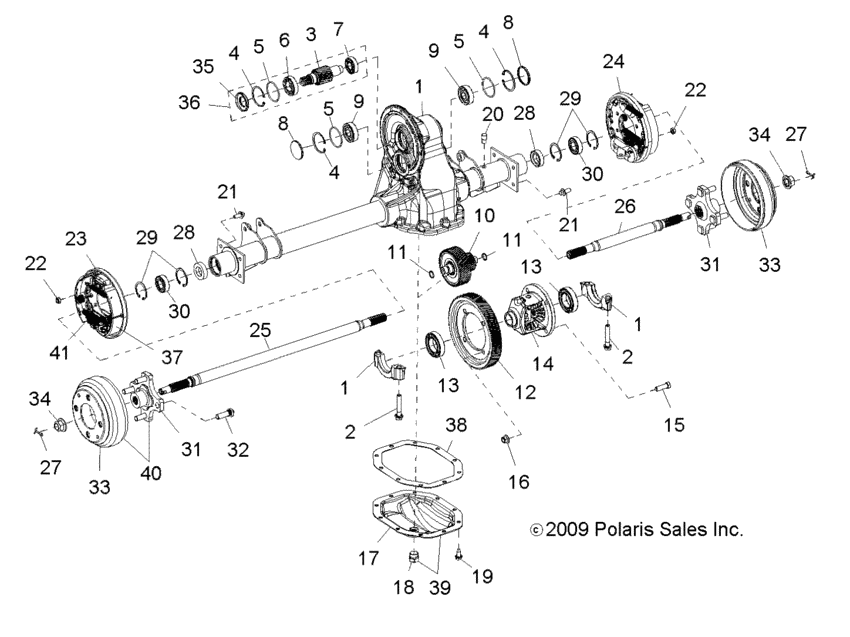

Drive train, axle, rear (L10AA08PA/PB/PC) Diagram Polaris BREEZE
- Model code
- L10AA08PA/PB/PC
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3235002 Housing-axle(012ch370x)Incl. 1,2; |
3235002 |
US $961.14 |
||
|
2
|
2
3235003 Bolt-bearing cap(527a10) |
3235003 |
US $4.71 |
||
|
3
|
3
3235004
Gear, input
|
3235004 |
— | ||
|
4
|
4
3235005 Ring-retaining(012hr101) |
3235005 |
US $4.36 |
||
|
5
|
5
3235006 O-ring(012hh118) |
3235006 |
US $3.17 |
||
|
6
|
6
3235007
Bearing, ball
|
3235007 |
— | ||
|
7
|
7
3235039 Kit-ball bearings(012hd137) |
3235039 |
US $77.98 |
||
|
8
|
8
3235009 Plug-end cap(012hg138) |
3235009 |
US $5.90 |
||
|
9
|
9
3235010
Bearing, ball
|
3235010 |
— | ||
|
10
|
10
3235011
Asm., gear, intermediate
|
3235011 |
— | ||
|
11
|
11
3235012
O-ring
|
3235012 |
— | ||
|
12
|
12
3235013
Gear, drive
|
3235013 |
— | ||
|
13
|
13
3235014
Bearing, ball
|
3235014 |
— | ||
|
14
|
14
3235015 Asm-differential(012da107x) |
3235015 |
US $316.70 |
||
|
15
|
15
3235016 Bolt-hex(012hm128) |
3235016 |
US $3.27 |
||
|
16
|
16
3235017 Nut-lock(012hn138) |
3235017 |
US $3.27 |
||
|
17
|
17
3235018 Plate-cover(012cv121-4) |
3235018 |
US $45.13 |
||
|
18
|
18
3235019 Plug-hex head(012hn122) |
3235019 |
US $12.16 |
||
|
19
|
19
3235020 Screw-tapping(527a6-1) |
3235020 |
US $2.10 |
||
|
20
|
20
3235021
Vent(012hn117)
|
3235021 |
— | ||
|
21
|
21
3235022 Screw-flange head(070hm251-1) |
3235022 |
US $2.70 |
||
|
22
|
22
3235023 Nut-lock(070hn218) |
3235023 |
US $2.10 |
||
|
23
|
23
3235024 Asm-brake,lh(012wd116-1x) |
3235024 |
US $189.07 |
||
|
24
|
24
3235025
Asm-brake,rh(012wd116-2x)
|
3235025 |
— | ||
|
25
|
25
3235026 Shaft-axle,lh(012sr131-27) |
3235026 |
US $152.43 |
||
|
26
|
26
3235027
Shaft-axle,rh(012sr131-26)
|
3235027 |
— | ||
|
27
|
27
3235028 Pin-cotter(012hr130) |
3235028 |
US $2 |
||
|
28
|
28
3235029 Seal-oil(515a8) |
3235029 |
US $8.35 |
||
|
29
|
29
3235030
Ring-retaining(514a7)
|
3235030 |
— | ||
|
30
|
30
3235031
Bearing-ball(585971)
|
3235031 |
— | ||
|
31
|
31
3235032
Asm-hub,wheel(012hu169x)
|
3235032 |
— | ||
|
32
|
32
3235033 Bolt-wheel(012hm145) |
3235033 |
US $5.65 |
||
|
33
|
33
3235034 Brum-brake(012wa123) |
3235034 |
US $124.06 |
||
|
34
|
34
3235035 Nut-hex,flange(012hn124) |
3235035 |
US $8.02 |
||
|
35
|
35
3235036 Seal-oil,input shaft(012hh152) |
3235036 |
US $18.90 |
||
|
36
|
36
3235037 Kit-input gear(012lk174)Incl. 3-7,35; |
3235037 |
US $207.97 |
||
|
37
|
37
3235043 Kit-shoe/lining(x4170506)1 Pair; |
3235043 |
US $207.97 |
||
|
38
|
38
3235044 Gasket-cover plate(012hg147) |
3235044 |
US $26.92 |
||
|
39
|
39
3235040
Kit, carrier cover
Incl. 17,18; |
3235040 |
— | ||
|
40
|
40
3235041
Kit, wheel hub and drum
Incl. 31,33; |
3235041 |
— | ||
|
41
|
41
3235042
Kit-springs, brake shoes(x41523
1 Set; |
3235042 |
— |
