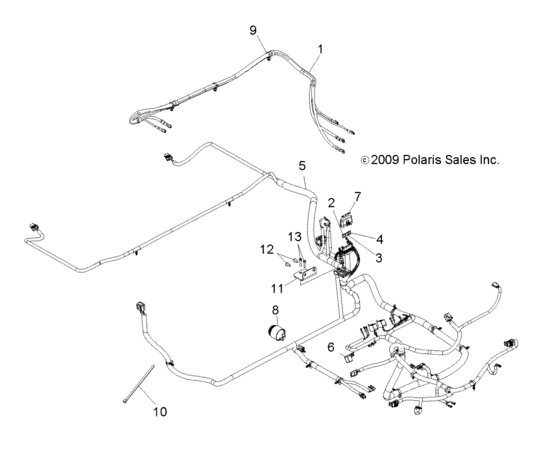

Electrical, wire harness (L10AA08PA/PB/PC) Diagram Polaris BREEZE
- Model code
- L10AA08PA/PB/PC
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012511 Harness-motor control |
4012511 |
US $230.04 |
||
|
2
|
2
4012809 Fuse-10 mini blade 58v(red) |
4012809 |
US $7.32 |
||
|
3
|
3
4011652
Fuse-5a,mini blade
|
4011652 |
— | ||
|
4
|
4
4011068 Fuse, 7.5 amp |
4011068 |
US $9.15 |
||
|
5
|
5
2411423
Harness-chassis
Incl. 2-7; |
2411423 |
— | ||
|
5
|
5
2878124 Kit, harness, charge plug |
2878124 |
US $128.80 |
||
|
6
|
6
4012530 Module-flasher |
4012530 |
US $61.43 |
||
|
7
|
7
7176218
Decal, fuse/relay block
|
7176218 |
— | ||
|
8
|
8
4012556 Alarm-reverse warning |
4012556 |
US $67.34 |
||
|
9
|
9
7081599 Strap-panduit,push mount |
7081599 |
US $2 |
||
|
10
|
10
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
11
|
11
5253901 Brkt-mount,charge plug |
5253901 |
US $8.51 |
||
|
12
|
12
7512017 Screw |
7512017 |
US $2.45 |
||
|
13
|
13
7518227 Scr-#8x3/4-hi/lo-pn-t20,trx-m |
7518227 |
US $1.49 |
