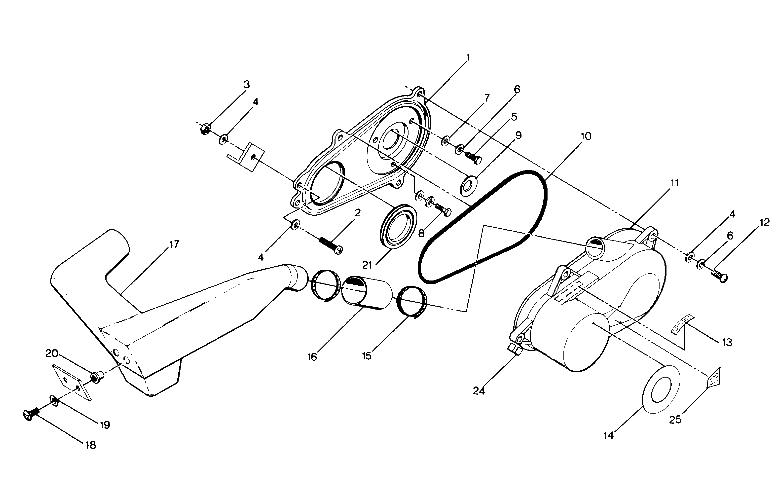

Clutch cover assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5430772
Cover, clutch, rear
|
5430772 |
— | ||
| replacement | |||||
|
1
|
1
2200803 Kit,inner clutch cvr, |
2200803 |
US $117.20 |
||
|
2
|
2
7512222 Screw(10)10; |
7512222 |
US $0.79 |
||
|
3
|
3
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
4
|
4
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
5
|
5
7512277 Bolt10; |
7512277 |
US $2.98 |
||
|
6
|
6
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
7
|
7
7555748 Washer10; |
7555748 |
US $2.45 |
||
|
9
|
9
5410489 Seal,cover case |
5410489 |
US $10.85 |
||
|
10
|
10
5521160
Seal,clutchcover
|
5521160 |
— | ||
| replacement | |||||
|
10
|
10
5521301 Seal,outer,clutch cover |
5521301 |
US $23.64 |
||
|
11
|
11
5430771
Cover, clutch,front*rtp
|
5430771 |
— | ||
|
12
|
12
7512281 Bolt(10)10; |
7512281 |
US $1.49 |
||
|
13
|
13
7072373
Decal,clutch cover
|
7072373 |
— | ||
| replacement | |||||
|
13
|
13
7072603
Decal,clutch cover
|
7072603 |
— | ||
|
14
|
14
7072386
Decal, pvt
No Longer Available; |
7072386 |
— | ||
|
15
|
15
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
16
|
16
5410423
Boot, intake
|
5410423 |
— | ||
|
17
|
17
5430914
Duct, air
|
5430914 |
— | ||
|
18
|
18
7512279 Screw(10) *10; |
7512279 |
US $0.79 |
||
|
19
|
19
7552604 Washer(10)10; |
7552604 |
US $2.45 |
||
|
20
|
20
7541923 Nut-well(10) *10; |
7541923 |
US $7.68 |
||
|
21
|
21
5410411
Seal,eng,/clutch
|
5410411 |
— | ||
|
24
|
24
7670051 Clip,clutch cover(10)10; |
7670051 |
US $1.89 |
||
|
25
|
25
7072419
Decal,eng.clutch mod.
No Longer Available; |
7072419 |
— | ||
