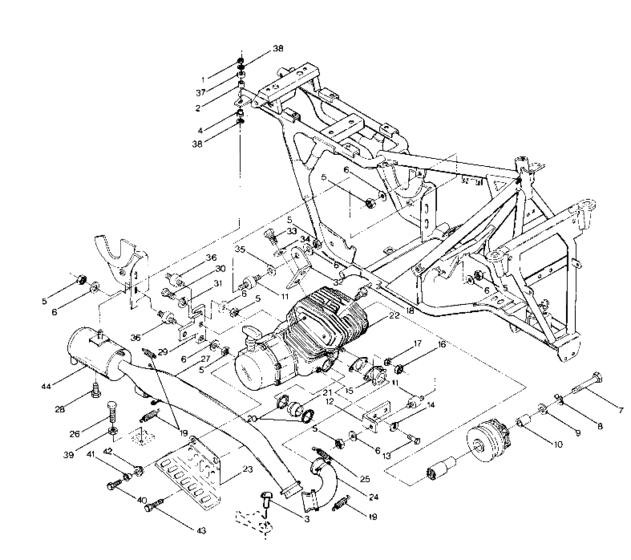

Engine and muffler mounting Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
2
|
2
5010235
Bushing,silencer mt.
|
5010235 |
— | ||
|
3
|
3
5410467 Dampner, vib, |
5410467 |
US $8.17 |
||
|
4
|
4
5410241
Dampener, vibration
|
5410241 |
— | ||
|
5
|
5
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
6
|
6
7555801 Washer10; |
7555801 |
US $2.45 |
||
|
7
|
7
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
8
|
8
7575202 Washer lock10; |
7575202 |
US $6.56 |
||
|
9
|
9
5210748 Washer(10)10; |
5210748 |
US $5.25 |
||
|
10
|
10
5430261 Bushing |
5430261 |
US $9.10 |
||
|
11
|
11
3110026
Mount, motor
|
3110026 |
— | ||
|
12
|
12
5220589
Plate,front mt.
|
5220589 |
— | ||
|
13
|
13
7512490 Screw10; |
7512490 |
US $3.75 |
||
|
14
|
14
7553001
Washer springlock
10; |
7553001 |
— | ||
| replacement | |||||
|
14
|
14
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
15
|
15
1260521
Manifold weld.
|
1260521 |
— | ||
|
16
|
16
3080285
Nut
10; |
3080285 |
— | ||
|
17
|
17
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
18
|
18
3070167
Sparkplug, rn4yc
3; |
3070167 |
— | ||
|
19
|
19
3081078
Spring return exhaust
|
3081078 |
— | ||
| replacement | |||||
|
19
|
19
7042031
Spring, exhaust
|
7042031 |
— | ||
|
20
|
20
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
21
|
21
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
22
|
22
1211450
Eng.cyclone
No Longer Available; ATV; |
1211450 |
— | ||
|
23
|
23
5220802
Shield,muffler
|
5220802 |
— | ||
|
24
|
24
1260517
Headpipe weld.
No Longer Available; |
1260517 |
— | ||
|
25
|
25
7042029 Spring(10)10; |
7042029 |
US $2.17 |
||
|
26
|
26
3110031
Support
|
3110031 |
— | ||
|
27
|
27
1260516
Muffler weld.
|
1260516 |
— | ||
|
28
|
28
7512666 Bolt10; |
7512666 |
US $3.75 |
||
|
29
|
29
5220757
Mount,rear
|
5220757 |
— | ||
| replacement | |||||
|
29
|
29
5241056-067 Mt,r,a/c(atv),blk, |
5241056-067 |
US $50.42 |
||
|
32
|
32
5220471
Mount,eng.,top
|
5220471 |
— | ||
| replacement | |||||
|
32
|
32
5220471-067
Mount, eng,,top
|
5220471-067 |
— | ||
|
33
|
33
7515321 Bolt10; |
7515321 |
US $1.89 |
||
|
34
|
34
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
35
|
35
5430802 Insulator,motor mt, |
5430802 |
US $7.09 |
||
|
36
|
36
3110028
Mount, engine
|
3110028 |
— | ||
|
37
|
37
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
38
|
38
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
39
|
39
7542301 Nut hex10; |
7542301 |
US $2.45 |
||
|
40
|
40
3083730 Asm,,bolt and washer |
3083730 |
US $2.98 |
||
|
41
|
41
3083732
Collar
|
3083732 |
— | ||
|
42
|
42
3083731 Mounting,rubber |
3083731 |
US $6.11 |
||
|
43
|
43
3083729 Asm,,bolt&washer |
3083729 |
US $3.26 |
||
|
44
|
44
1260520
Arrestor, spark
No Longer Available; |
1260520 |
— | ||
