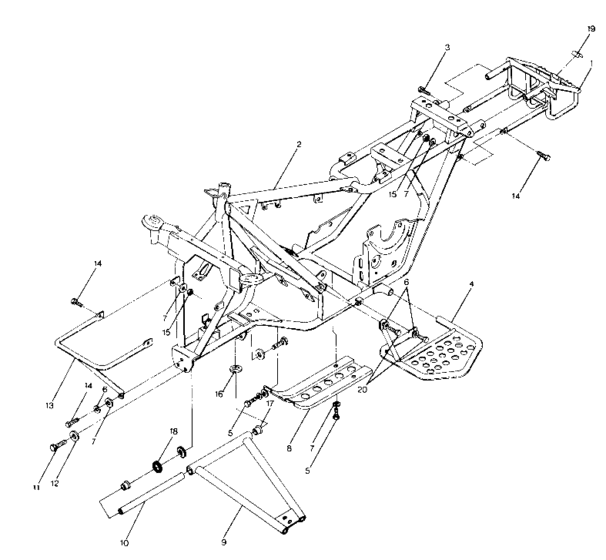

Frame assembly with racks Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2670102
Rack,rear,weld.
|
2670102 |
— | ||
| replacement | |||||
|
1
|
1
2670102-116
New Genuine Part
|
2670102-116 |
— | ||
|
2
|
2
1011622
Frame
No Longer Available; CYCLONE; |
1011622 |
— | ||
|
3
|
3
7512252
Screw
10; |
7512252 |
— | ||
|
4
|
4
1040132
Pad,foot,lh,weld
|
1040132 |
— | ||
|
4
|
4
1040133
Pad,foot,rh,weld
No Longer Available; |
1040133 |
— | ||
|
5
|
5
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
6
|
6
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
7
|
7
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
8
|
8
5220789
Plate,rock guard
|
5220789 |
— | ||
|
9
|
9
1580014
Arm,swing,lh
|
1580014 |
— | ||
|
9
|
9
1580015 Arm,swing,rh |
1580015 |
US $141.98 |
||
|
10
|
10
5020477
Shaft,`a` arm
|
5020477 |
— | ||
|
11
|
11
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
11
|
11
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
11
|
11
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
12
|
12
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
13
|
13
2670101
Bumper,front,weld.
|
2670101 |
— | ||
| replacement | |||||
|
13
|
13
2670101-116
New Genuine Part
|
2670101-116 |
— | ||
|
14
|
14
7512307 Screw10; |
7512307 |
US $2.45 |
||
|
15
|
15
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
16
|
16
7556301 Bushing(10)10; |
7556301 |
US $2.77 |
||
|
17
|
17
3576509
Bearing,`a` arm
|
3576509 |
— | ||
| replacement | |||||
|
17
|
17
2200474 Kit,a-arm bush,(pre-93,atv) |
2200474 |
US $43.94 |
||
|
18
|
18
5410458
O ring
|
5410458 |
— | ||
|
19
|
19
7072424
Decal, warning
No Longer Available; |
7072424 |
— | ||
|
20
|
20
7512315 Bolt10; |
7512315 |
US $2.98 |
||
