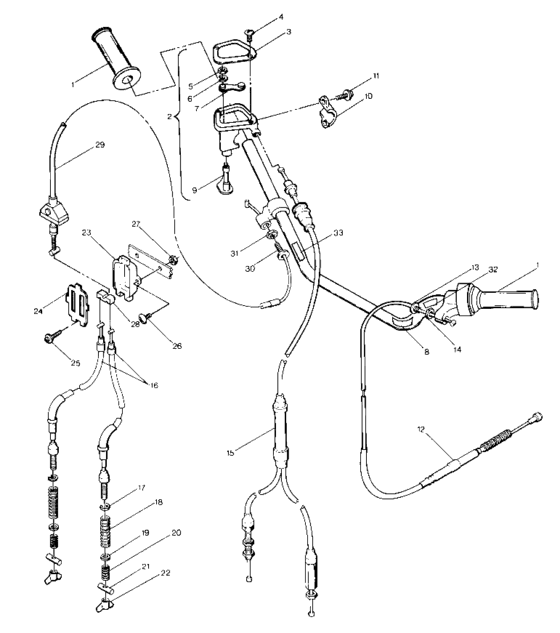

Hand control cable assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410416
Grip, handle bar
|
5410416 |
— | ||
| replacement | |||||
|
1
|
1
5431030
Grip, handlebar
|
5431030 |
— | ||
|
2
|
2
2010045
Lever,throttle asm.
No Longer Available; |
2010045 |
— | ||
|
3
|
3
5430804
Cover,throttle control
Incl. 3-9; |
5430804 |
— | ||
|
4
|
4
2010054
Screw
|
2010054 |
— | ||
|
5
|
5
2010053
Nut
|
2010053 |
— | ||
|
6
|
6
2010052
Washer
No Longer Available; |
2010052 |
— | ||
|
7
|
7
2010069
Arm,throttle
No Longer Available; |
2010069 |
— | ||
|
8
|
8
7072390
Decal,o`ride switch
|
7072390 |
— | ||
| replacement | |||||
|
8
|
8
7076274
Decal,o'ride sw,2wd
|
7076274 |
— | ||
|
9
|
9
2010049 Lever |
2010049 |
US $16.89 |
||
|
10
|
10
2050005
Holder,lever,low.1
|
2050005 |
— | ||
|
11
|
11
2010047
Screw&washer
|
2010047 |
— | ||
|
12
|
12
7080340
Cable,brake
|
7080340 |
— | ||
|
13
|
13
2050023
Bolt
|
2050023 |
— | ||
|
14
|
14
2050024
Nut
|
2050024 |
— | ||
|
15
|
15
7080328
Cable, throttle
|
7080328 |
— | ||
|
16
|
16
2050038
Cable, brake
|
2050038 |
— | ||
|
17
|
17
2050035
Clip, circle
|
2050035 |
— | ||
|
18
|
18
2050033
Spring, compression
|
2050033 |
— | ||
|
19
|
19
2050034
Washer
|
2050034 |
— | ||
|
20
|
20
2050015
Spring,compression
|
2050015 |
— | ||
|
21
|
21
2050016
Pin
|
2050016 |
— | ||
|
22
|
22
2050014
Nut, wing
|
2050014 |
— | ||
|
23
|
23
2050029
Housing, brake line
No Longer Available; |
2050029 |
— | ||
|
24
|
24
2050031
Plate
|
2050031 |
— | ||
|
25
|
25
2050032
Screw w/ washer
|
2050032 |
— | ||
|
26
|
26
7511989
Screw
10; |
7511989 |
— | ||
|
27
|
27
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
28
|
28
2050030
Cable, joint
|
2050030 |
— | ||
|
29
|
29
2050028
Cable,brake,upper
|
2050028 |
— | ||
|
32
|
32
7072377
Decal,r.brk,
No Longer Available; ENG/FR.; |
7072377 |
— | ||
|
33
|
33
7072378
Decal,f.brk,
No Longer Available; ENG/FR; |
7072378 |
— | ||
