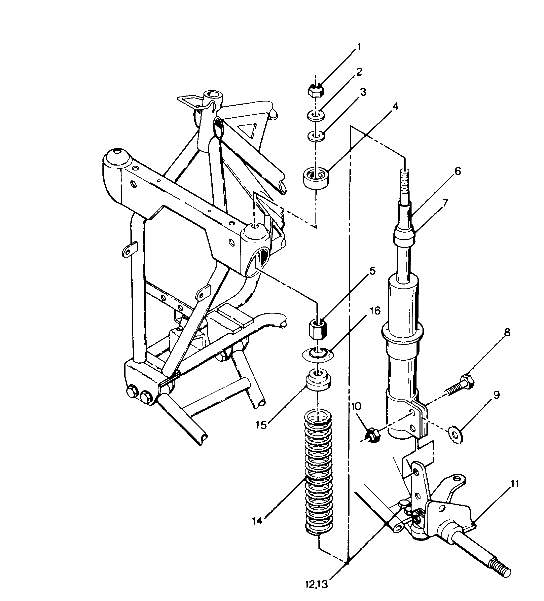

Strut assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542507 Nut,flex loc(10)10; |
7542507 |
US $4.43 |
||
|
2
|
2
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
|
3
|
3
5810291 Spacer, rubber (10) |
5810291 |
US $3.75 |
||
|
4
|
4
5430806
Pivot ball, top
|
5430806 |
— | ||
| replacement | |||||
|
4
|
4
5432872 Pivot,ball,top |
5432872 |
US $13.04 |
||
|
5
|
5
5130631
Spacer, threaded
|
5130631 |
— | ||
|
6
|
6
1843010
Tube,strut,weld, *
|
1843010 |
— | ||
|
7
|
7
5410429
Bumper, rubber
|
5410429 |
— | ||
|
8
|
8
7512516
Bolt
No Longer Available; |
7512516 |
— | ||
|
9
|
9
7571612
Washer, lock
10; |
7571612 |
— | ||
|
10
|
10
7542522 Nut,flange10; |
7542522 |
US $3.75 |
||
|
11
|
11
1821025
Spindle, lh
|
1821025 |
— | ||
| replacement | |||||
|
11
|
11
1821025-067
New Genuine Part
|
1821025-067 |
— | ||
|
11
|
11
1821026
Spindle, rh
No Longer Available; |
1821026 |
— | ||
|
12
|
12
7515425
Bolt
10; |
7515425 |
— | ||
| replacement | |||||
|
12
|
12
7512404 Bolt10; |
7512404 |
US $6.56 |
||
|
13
|
13
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
14
|
14
7041189
Spring,strut,red
|
7041189 |
— | ||
| replacement | |||||
|
14
|
14
7041161-067
Spring, strut
|
7041161-067 |
— | ||
|
15
|
15
5220602
Retainer,spring,top
|
5220602 |
— | ||
|
16
|
16
5430807
Pivot ball,bottom
|
5430807 |
— | ||
| replacement | |||||
|
16
|
16
5432871 Pivot,ball,bottom |
5432871 |
US $9.85 |
||
