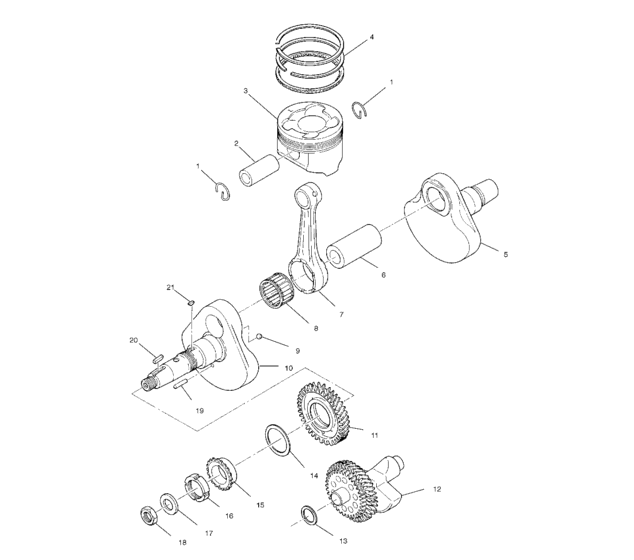

Crankshaft and piston (A00CH46CA) Diagram Polaris DIESEL
- Model code
- A00CH46CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3085987 Circlip(10)10; |
3085987 |
US $1.89 |
||
|
2
|
2
3084886 Pin,piston |
3084886 |
US $31.41 |
||
|
3
|
3
3086188
Set,piston,,020"/,50mm o/s
.50 O/S;0.50mm O/S;Incl. 1; |
3086188 |
— | ||
|
3
|
3
3086186
Set, piston standard
STD;Std;Incl. 1; |
3086186 |
— | ||
|
3
|
3
3086187
Set,piston,,010"/,25mm o/s
.25 O/S;0.25mm O/S;Incl. 1; |
3086187 |
— | ||
|
4
|
4
3085984
Piston,ring(std)
STD;Std; |
3085984 |
— | ||
|
4
|
4
3085985
Set,piston ring ,010"/,25mm o/s
0.25mm O/S; |
3085985 |
— | ||
|
4
|
4
3085986
Set,piston ring
0.50mm O/S; |
3085986 |
— | ||
|
5
|
5
3085374
Crankshaft#2,pto side
|
3085374 |
— | ||
|
6
|
6
3087090
Pin-crank
|
3087090 |
— | ||
|
7
|
7
3085978
Rod,connecting
|
3085978 |
— | ||
|
8
|
8
3085400 Bearing,large end |
3085400 |
US $97.44 |
||
| replacement | |||||
|
8
|
8
3085343
Bearing, end, large
|
3085343 |
— | ||
|
9
|
9
3085024 Ball, steel |
3085024 |
US $7.91 |
||
|
10
|
10
3085976
Crankshaft
|
3085976 |
— | ||
|
10
|
10
3085975
Crankshaft,asm,
Incl. 5-11,19; |
3085975 |
— | ||
|
11
|
11
3085852
Gear,balancer #1 *
|
3085852 |
— | ||
|
12
|
12
3086158
Shaft-balancer
|
3086158 |
— | ||
|
13
|
13
3084897 Spacer,1,21.2; |
3084897 |
US $4.94 |
||
|
13
|
13
3084895 Spacer,0,80.8; |
3084895 |
US $4.94 |
||
|
13
|
13
3084896 Spacer,1,01.0; |
3084896 |
US $4.94 |
||
|
14
|
14
3240088 Spacer,0,60.6; |
3240088 |
US $9.91 |
||
|
14
|
14
3084892 Spacer,0,80.8; |
3084892 |
US $11.25 |
||
|
14
|
14
3084893 Spacer,1,01.0; |
3084893 |
US $16.24 |
||
|
14
|
14
3084894 Spacer,1,21.2; |
3084894 |
US $16.24 |
||
|
15
|
15
3085979
Sprocket 1
|
3085979 |
— | ||
|
16
|
16
3085980 Nut |
3085980 |
US $27.27 |
||
|
17
|
17
3083904
Washer
|
3083904 |
— | ||
| replacement | |||||
|
17
|
17
3086767
Washer
|
3086767 |
— | ||
|
18
|
18
3083905
Nut,lock
|
3083905 |
— | ||
|
19
|
19
3085346
Pin, dowel
|
3085346 |
— | ||
|
20
|
20
3081447 Key |
3081447 |
US $28.80 |
||
|
21
|
21
3080130
Key, woodruff
|
3080130 |
— | ||
| replacement | |||||
|
21
|
21
3081543 Key woodruff |
3081543 |
US $9.15 |
||
