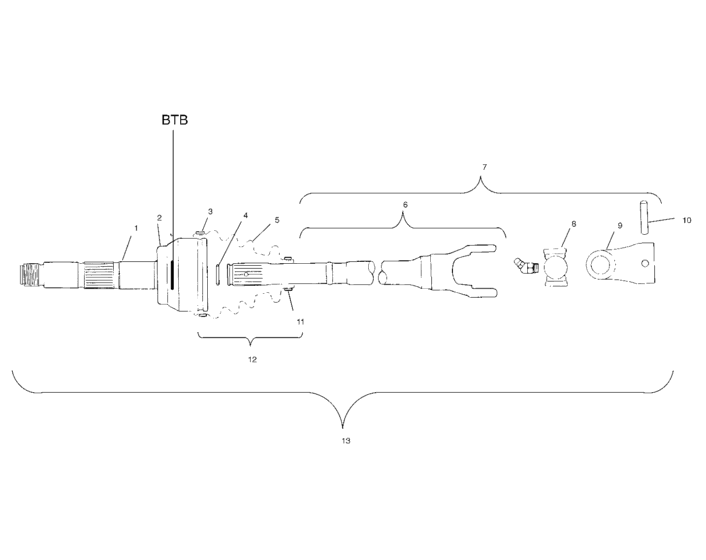

Cv joint (BTB) Diagram Polaris DIESEL
- Model code
- A00CH46CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1380119 Hsg,asm,cv,w/slv,btb-gkn |
1380119 |
US $441.18 |
||
|
2
|
2
5222299 Sleeve, seal |
5222299 |
US $30.10 |
||
|
3
|
3
3260115 Clamp, large10; |
3260115 |
US $8.68 |
||
|
4
|
4
7670091
Circlip,driveshaft,btb
|
7670091 |
— | ||
|
5
|
5
5411106 Boot, cv joint |
5411106 |
US $57.42 |
||
|
6
|
6
1380094
Shaft replacement
Incl. 4; |
1380094 |
— | ||
|
7
|
7
1380092 Cardan replacementIncl. 4,6,8,9; |
1380092 |
US $287 |
||
|
8
|
8
2200771 Kit,cross&bearing |
2200771 |
US $103.41 |
||
|
9
|
9
3260130
Yoke, splined
|
3260130 |
— | ||
|
10
|
10
7661913 Pin,spring(10)10; |
7661913 |
US $39.40 |
||
|
11
|
11
7080627
Clamp, band
|
7080627 |
— | ||
|
12
|
12
2200773
Kit,boot,cv joint,btb
Incl. 3,5,11; |
2200773 |
— | ||
|
13
|
13
2200961
Kit,driveshaft,w/slv,btb
|
2200961 |
— | ||
| replacement | |||||
|
13
|
13
2200960 Kit,driveshaft,w/slv,front-neap |
2200960 |
US $335.91 |
||
