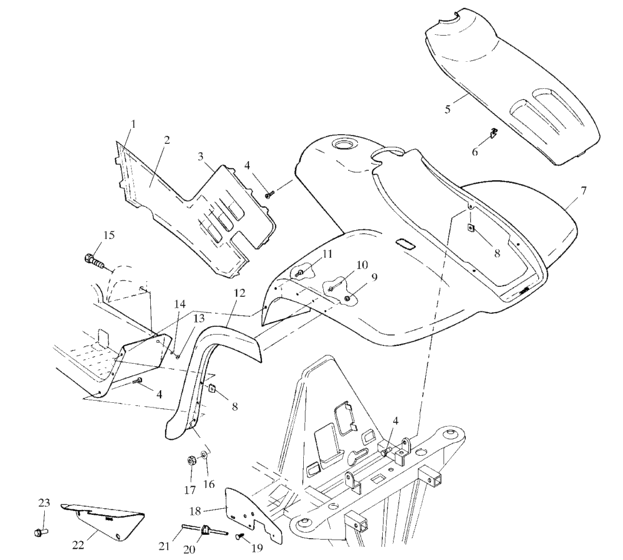

Front cab (A00CH46CA) Diagram Polaris DIESEL
- Model code
- A00CH46CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811491 Foil-rh |
5811491 |
US $4.34 |
||
|
2
|
2
5811743
Foil,foam,side panel
|
5811743 |
— | ||
|
3
|
3
2632017-157 Panel,asm,side,rh,bonnie blue |
2632017-157 |
US $122.12 |
||
|
3
|
3
5431809-157 Panel,lh,side,bon,blue |
5431809-157 |
US $122.12 |
||
|
4
|
4
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
5
|
5
5432088-157
Cover,front,bon,blue
|
5432088-157 |
— | ||
|
6
|
6
7670085 Clip,spring(10)10; |
7670085 |
US $1.77 |
||
|
7
|
7
2631987-157
Cab, front,
|
2631987-157 |
— | ||
|
8
|
8
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
9
|
9
7670068 Nut, push-on(10) *10; |
7670068 |
US $0.79 |
||
|
10
|
10
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
|
11
|
11
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
12
|
12
5431798
Mudguard,lh,frt.blk.
|
5431798 |
— | ||
| replacement | |||||
|
12
|
12
5431798-070 Guard-mudflap,front,black,lh |
5431798-070 |
US $56.14 |
||
|
12
|
12
5431799
Mudguard,rh,frt.blk.
|
5431799 |
— | ||
| replacement | |||||
|
12
|
12
5431799-070 Guard-mudflap,front,black,rh |
5431799-070 |
US $56.14 |
||
|
13
|
13
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
14
|
14
7555792 Washer10; |
7555792 |
US $2.45 |
||
|
15
|
15
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
15
|
15
7511989
Screw
10; |
7511989 |
— | ||
|
16
|
16
7555931
Washer
10; |
7555931 |
— | ||
| replacement | |||||
|
16
|
16
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
17
|
17
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
18
|
18
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
|
19
|
19
7670090 Clip,plastic dart,nylon(10)10; |
7670090 |
US $39.40 |
||
|
20
|
20
7670109 Clip-routing |
7670109 |
US $3.75 |
||
|
21
|
21
5411778
Desc not_available
|
5411778 |
— | ||
|
22
|
22
5244913-067 Guard-splash,sportman,lh,blk |
5244913-067 |
US $34.67 |
||
|
22
|
22
5244914-067 Guard-splash,sportman,rh,blk |
5244914-067 |
US $32.52 |
||
|
23
|
23
7515194
Screw
10; |
7515194 |
— | ||
| replacement | |||||
|
23
|
23
7517685 Screw(10)10; |
7517685 |
US $65.60 |
||
