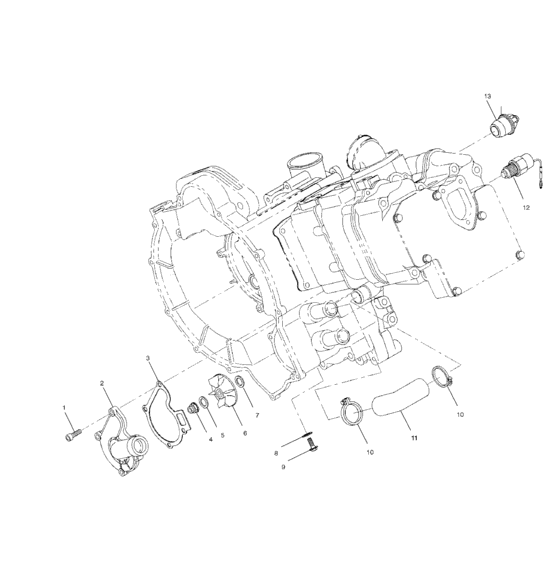

Water pump (A00CH46CA) Diagram Polaris DIESEL
- Model code
- A00CH46CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086062 Bolt |
3086062 |
US $2.28 |
||
|
2
|
2
3086059 Cover,water pump |
3086059 |
US $41.18 |
||
|
3
|
3
3086060
Gasket,water pump
|
3086060 |
— | ||
|
4
|
4
3085077 Nut,self-lock |
3085077 |
US $7.68 |
||
|
5
|
5
3083138
Gasket, alum
10; |
3083138 |
— | ||
| replacement | |||||
|
5
|
5
7555998 Washer,flat(10) *10; |
7555998 |
US $0.79 |
||
|
6
|
6
3084935 Impeller |
3084935 |
US $49.23 |
||
|
7
|
7
3084942 Washer,seal |
3084942 |
US $10.83 |
||
|
8
|
8
3082758
Gasket, alum
10; |
3082758 |
— | ||
| replacement | |||||
|
8
|
8
7555998 Washer,flat(10) *10; |
7555998 |
US $0.79 |
||
|
9
|
9
3085359 Bolt,flange(10)10; |
3085359 |
US $0.79 |
||
|
10
|
10
3084191
Clamp, hose
|
3084191 |
— | ||
| replacement | |||||
|
10
|
10
3086774 Clamp-hose |
3086774 |
US $14.09 |
||
|
11
|
11
3086061 Hose,main |
3086061 |
US $24.43 |
||
|
12
|
12
3085352 Switch,thermo, * |
3085352 |
US $155.61 |
||
|
13
|
13
3084940 Thermostat * |
3084940 |
US $108.29 |
||
