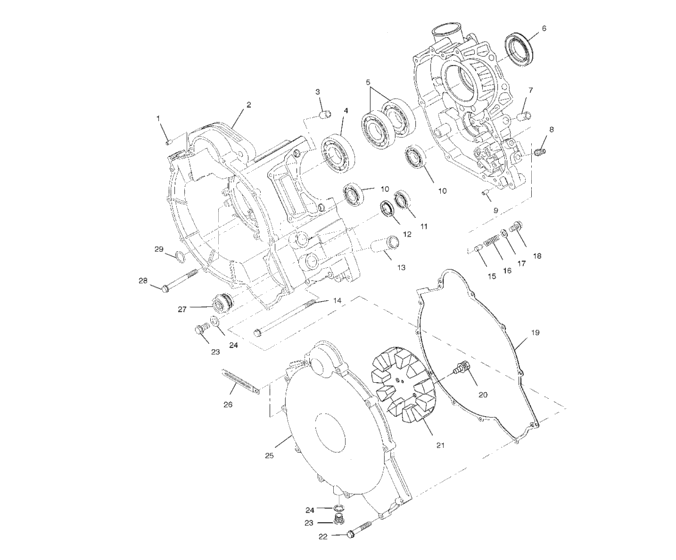

Crankcase (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3080103
Pin, dowel
|
3080103 |
— | ||
| replacement | |||||
|
1
|
1
3086838 Pin,dowel |
3086838 |
US $4.73 |
||
|
2
|
2
3087078
Asm-crankcase
Incl. 1,4,5,6,7,9-14,27,28; |
3087078 |
— | ||
|
3
|
3
3084838
Pin, straight
|
3084838 |
— | ||
|
4
|
4
3087080 Bearing-ball |
3087080 |
US $71.89 |
||
|
5
|
5
3085947
Bearing,ball
|
3085947 |
— | ||
|
6
|
6
3084839 Seal, oil |
3084839 |
US $35.12 |
||
|
7
|
7
3085525 Pipe,air breather |
3085525 |
US $14.28 |
||
|
8
|
8
3084842 Union |
3084842 |
US $18.76 |
||
|
9
|
9
3084840 Pin, dowel |
3084840 |
US $5.43 |
||
|
10
|
10
3084834 Bearing,ball |
3084834 |
US $29.54 |
||
|
11
|
11
3084835
Bearing,ball
|
3084835 |
— | ||
|
12
|
12
3084836
Seal, oil
|
3084836 |
— | ||
|
13
|
13
3083452 Pipe, water |
3083452 |
US $32.52 |
||
|
14
|
14
3085949 Bolt,flange |
3085949 |
US $6.69 |
||
|
15
|
15
3086810
Valve-oneway
|
3086810 |
— | ||
|
16
|
16
3084844 Spring,one way valve |
3084844 |
US $5.25 |
||
|
17
|
17
3084846 Gasket,(alum,)(10)ALUM.;10; |
3084846 |
US $92.40 |
||
|
18
|
18
3084845
Plug
|
3084845 |
— | ||
|
19
|
19
3085951
Gasket,cover
|
3085951 |
— | ||
|
20
|
20
3087084
Bolt & washer
|
3087084 |
— | ||
| replacement | |||||
|
20
|
20
3082021 Bolt |
3082021 |
US $2.77 |
||
|
21
|
21
3087076 Plate-rubber |
3087076 |
US $71.89 |
||
|
22
|
22
3086087 Bolt&washer asm, |
3086087 |
US $3.94 |
||
|
23
|
23
3083453 Plug |
3083453 |
US $1.66 |
||
| replacement | |||||
|
23
|
23
3086749
Plug
|
3086749 |
— | ||
|
24
|
24
3082956 Gasket (10) |
3082956 |
US $34.10 |
||
|
25
|
25
3087081 Cover-flywheel |
3087081 |
US $142.80 |
||
|
26
|
26
3083590 Clamp |
3083590 |
US $3.26 |
||
|
27
|
27
3084837 Seal,mechanical * |
3084837 |
US $85.33 |
||
|
28
|
28
3084841 Bolt,flange |
3084841 |
US $3.26 |
||
|
29
|
29
3084847 O-ring |
3084847 |
US $3.06 |
||
