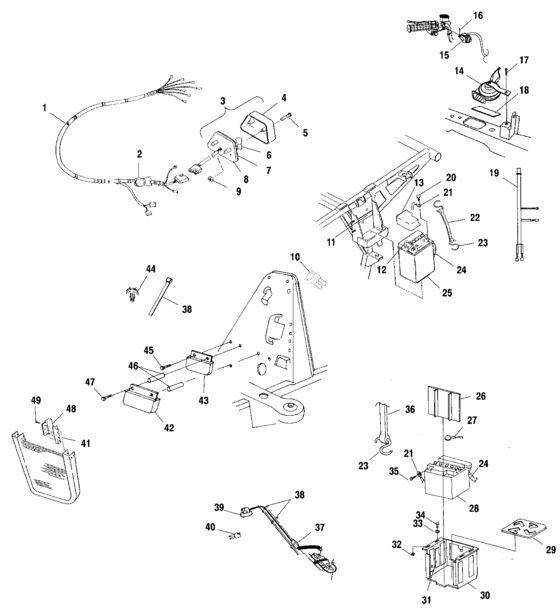

Electrical/taillight (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460893 Harness-mainwire,diesel |
2460893 |
US $359.47 |
||
|
2
|
2
2200593 Kit,ckt,brkr,20 amp |
2200593 |
US $45.69 |
||
|
3
|
3
2432034 Tail light asm,Incl. 4-9;Incl. 4-9; |
2432034 |
US $51.21 |
||
|
4
|
4
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
5
|
5
4032029 Screw |
4032029 |
US $2.98 |
||
|
6
|
6
4030043 Bulb |
4030043 |
US $4.94 |
||
|
7
|
7
4032045 Gasket |
4032045 |
US $5.11 |
||
|
8
|
8
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
9
|
9
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
10
|
10
2460731 Harness-jumper,im to 3f ,180 |
2460731 |
US $9.15 |
||
|
11
|
11
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
12
|
12
4010148 Cable,battery,red |
4010148 |
US $24.43 |
||
|
13
|
13
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
14
|
14
4010310
Horn
|
4010310 |
— | ||
|
15
|
15
4010311 Switch,button |
4010311 |
US $49.25 |
||
|
16
|
16
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
17
|
17
7512057
Screw
|
7512057 |
— | ||
|
18
|
18
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
18
|
18
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
19
|
19
2460837 Harness-adapter,horn |
2460837 |
US $30.54 |
||
|
20
|
20
2200360 Bolt,batt,kit(long) |
2200360 |
US $7.68 |
||
|
21
|
21
4010199 Cable-blk(battery/battery)15" |
4010199 |
US $15.26 |
||
|
22
|
22
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
23
|
23
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
24
|
24
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
25
|
25
4140006 Battery |
4140006 |
US $275.60 |
||
|
26
|
26
5432840 Retainer,battery |
5432840 |
US $19.51 |
||
|
27
|
27
4010197 Cable-red,battery/battery |
4010197 |
US $15.26 |
||
|
28
|
28
4140012
Battery, 30 amp
|
4140012 |
— | ||
|
29
|
29
5811623 Pad,battery |
5811623 |
US $3.64 |
||
|
30
|
30
1040665-067
Box,battery,blk
|
1040665-067 |
— | ||
|
31
|
31
5811651
Pad, battery, side
|
5811651 |
— | ||
|
32
|
32
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
33
|
33
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
34
|
34
7512130 Bolt |
7512130 |
US $2.45 |
||
|
35
|
35
2201155 Bolt,batt,kit,30 amp |
2201155 |
US $1 |
||
|
36
|
36
5411456
Strap
|
5411456 |
— | ||
|
37
|
37
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
38
|
38
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
39
|
39
2410022
Power asm,12v
|
2410022 |
— | ||
|
40
|
40
2460442 Pigtail, power |
2460442 |
US $15.26 |
||
|
41
|
41
5131036
Heatsink rect,
|
5131036 |
— | ||
|
42
|
42
4010215 Anti-rev, rotational mod lr500 |
4010215 |
US $112.28 |
||
|
43
|
43
4060202 Cutoff,lr58,12vdc,(alt,opr) |
4060202 |
US $96.51 |
||
|
44
|
44
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
45
|
45
7512024 Screw |
7512024 |
US $2.45 |
||
|
46
|
46
5020864
Spacer
|
5020864 |
— | ||
|
47
|
47
7512025 Screw |
7512025 |
US $3.26 |
||
|
48
|
48
4010182 Rectifier-regulator,lr-300 |
4010182 |
US $167.90 |
||
|
49
|
49
7512018 Screw(10) |
7512018 |
US $0.79 |
||
