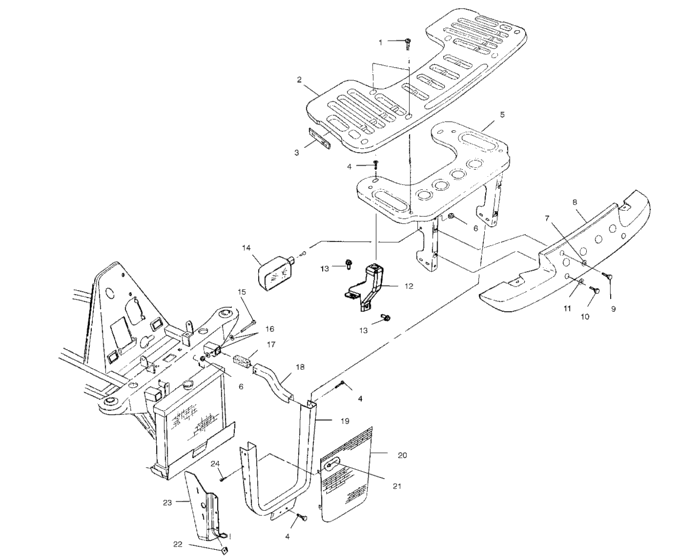

Front rack and bumper mounting (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
2
|
2
2670180-070 Rack,front,blk **Incl. Ref. 3 & Warning Decal;Incl. Ref. 3 & Warning Decal; |
2670180-070 |
US $254.08 |
||
|
3
|
3
2670071
Reflector amber
If built before 4/30/01;If built before 4/30/01; |
2670071 |
— | ||
|
3
|
3
7079926 Decal-reflect,6,75,amberIf built after 4/30/01;If built after 4/30/01; |
7079926 |
US $9.75 |
||
|
4
|
4
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
5
|
5
2200775
Kit, front rack mount
|
2200775 |
— | ||
|
6
|
6
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
7
|
7
7558403 Washer,wrought |
7558403 |
US $2.45 |
||
|
8
|
8
5432155-070 Bumper,blk |
5432155-070 |
US $152.65 |
||
|
9
|
9
7515391 Bolt(10) * |
7515391 |
US $1.89 |
||
|
10
|
10
7515390
Bolt
|
7515390 |
— | ||
|
11
|
11
7555954 Washer |
7555954 |
US $2.45 |
||
|
12
|
12
1013744-067 Weld-support rack,front,lh,blk |
1013744-067 |
US $138.64 |
||
|
12
|
12
1013746-067 Weld-support,rack,front,rh,blk |
1013746-067 |
US $114.99 |
||
|
13
|
13
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
14
|
14
2431014 Asm,,headlight, side mount,lh,3 |
2431014 |
US $128.21 |
||
|
14
|
14
2431015 Asm,,headlight, side mount,rh,3 |
2431015 |
US $128.21 |
||
|
14
|
14
4030059
Bulb,h/l,27w,hobbs
|
4030059 |
— | ||
|
15
|
15
7512329 Bolt |
7512329 |
US $4.59 |
||
|
16
|
16
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
17
|
17
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
18
|
18
5244729-067 Extension-frame,lh,blk |
5244729-067 |
US $140.81 |
||
|
18
|
18
5244730-067 Extension-frame,rh,blk |
5244730-067 |
US $140.81 |
||
|
19
|
19
5244731-067
Guard, brush
|
5244731-067 |
— | ||
|
20
|
20
5240591-067 Grill,brushguard,blk, |
5240591-067 |
US $94.52 |
||
|
21
|
21
7621330 Rivet, pop(50) |
7621330 |
US $0.79 |
||
|
22
|
22
7670094 Nut |
7670094 |
US $3.75 |
||
|
23
|
23
5433923 Shield-radiator,side,lh |
5433923 |
US $28.58 |
||
|
23
|
23
5433924 Shield-radiator,side,rh |
5433924 |
US $28.58 |
||
|
24
|
24
7512097 Screw(10) |
7512097 |
US $1.49 |
