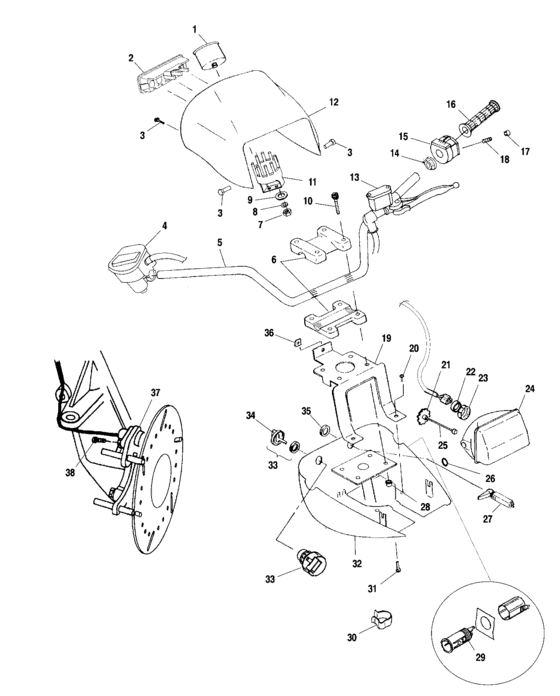

Handlebar and headlight pod (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3280359
Speedometer,kilo,3.38",6p
|
3280359 |
— | ||
|
2
|
2
4010315
Panel, indicator light, 3 position
|
4010315 |
— | ||
| replacement | |||||
|
2
|
2
4010459
Panel-indicator,svc,std pvt
|
4010459 |
— | ||
|
3
|
3
7511881 Screw(10)10; |
7511881 |
US $26.30 |
||
|
5
|
5
5242987-067 Tube-handlebar,blk |
5242987-067 |
US $85.77 |
||
|
6
|
6
2200774
Kit,h`bar block
Incl. Blocks and 6,10,28; |
2200774 |
— | ||
|
6
|
6
5630616-067
Block,h'bar retainer,blk
|
5630616-067 |
— | ||
|
7
|
7
7541933 Nut10; |
7541933 |
US $2.45 |
||
|
8
|
8
7555868 Washer, lock,(s,s,)S.S.;10; |
7555868 |
US $2.45 |
||
|
9
|
9
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
10
|
10
7515189 Screw(10) *10; |
7515189 |
US $1.89 |
||
|
11
|
11
3280291
Clamp,back,elec,speedo,3,38"
|
3280291 |
— | ||
|
12
|
12
5433763-157
Pod-headlight,upper,bon blue
|
5433763-157 |
— | ||
|
14
|
14
5433903 Spacer-switch,lh,99 |
5433903 |
US $10.61 |
||
|
15
|
15
4010262 Switch-handlebar,h/l/o,rev/or |
4010262 |
US $177.26 |
||
|
16
|
16
5433834-070 Grip-hndlbar,7/8 id,black |
5433834-070 |
US $16.24 |
||
|
17
|
17
5432952 Plug,hole10; |
5432952 |
US $3.15 |
||
|
18
|
18
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
19
|
19
5244969-067
Brkt-pod mounting,blk
|
5244969-067 |
— | ||
|
20
|
20
7517317 Screw(10)10; |
7517317 |
US $0.79 |
||
|
21
|
21
4032079 Knob,adjusting |
4032079 |
US $18.32 |
||
|
22
|
22
5411120 Boot,headlight |
5411120 |
US $20.69 |
||
|
23
|
23
4032077 Collar,lock |
4032077 |
US $20.69 |
||
|
24
|
24
4032075 Asm,headlight w/adjust rod-knob |
4032075 |
US $107.52 |
||
|
24
|
24
2870448 Bulb,quartz,h/l h4,60/55w |
2870448 |
US $21.35 |
||
|
25
|
25
4032078
Rod,adjusting
|
4032078 |
— | ||
|
26
|
26
5410163 O ring (10) |
5410163 |
US $2.28 |
||
|
27
|
27
7080757
Cable-fuel shut off
|
7080757 |
— | ||
|
28
|
28
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
29
|
29
4010283 Receptacle-pod mnt,12 volt |
4010283 |
US $18.32 |
||
|
30
|
30
7080631 Clip,cable retain,(10) *10; |
7080631 |
US $9.38 |
||
|
31
|
31
7522021 Screw(10)10; |
7522021 |
US $0.79 |
||
|
32
|
32
5433970-070
Pod-headlight,lwr snap black
|
5433970-070 |
— | ||
|
33
|
33
4110264
Switch, ignition
Incl. Key; |
4110264 |
— | ||
|
33
|
33
4010278 Key blank (20/21/67/68) series6700&6800 SERIES; |
4010278 |
US $12.81 |
||
|
33
|
33
4010321 Key blank (22/23/27/28) series2700&2800 SERIES; |
4010321 |
US $14.77 |
||
|
33
|
33
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
33
|
33
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
34
|
34
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
35
|
35
7080229 Nut |
7080229 |
US $16.24 |
||
|
36
|
36
7670127 Clip-screw,#8/10,,03-,10,panel |
7670127 |
US $8.42 |
||
|
37
|
37
5132382 Cap-hall sensor |
5132382 |
US $16.24 |
||
|
37
|
37
4010298 Sensor,hall effect |
4010298 |
US $91.60 |
||
|
38
|
38
7517658 Screw |
7517658 |
US $3.75 |
||
