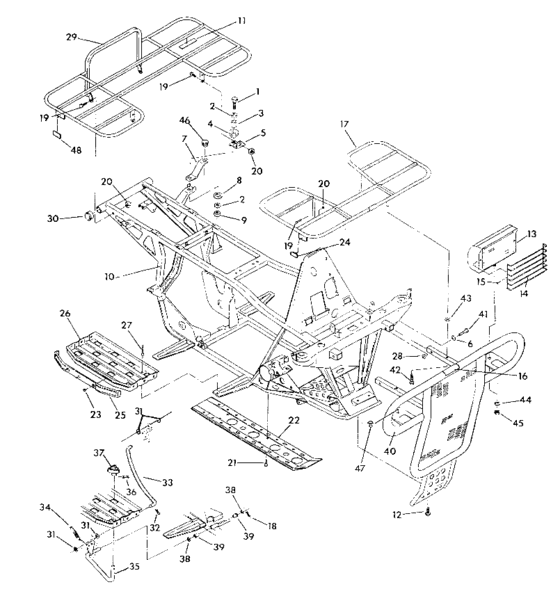

Frame assembly w/racks (Swedish 350 4X4) Diagram Polaris EURO TRAIL BOSS 4X4
- Model code
- S928139
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
2
|
2
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
5410241
Dampener, vibration
|
5410241 |
— | ||
|
5
|
5
5243469-067
Brkt,support rack,rh,blk
|
5243469-067 |
— | ||
|
5
|
5
5243468-067
Brkt,support rack,lh,blk
|
5243468-067 |
— | ||
|
6
|
6
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
7
|
7
5220902-067 Support,r,fender |
5220902-067 |
US $36.61 |
||
|
8
|
8
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
9
|
9
7542324 Nut,nylok(10)10;Nylok; |
7542324 |
US $26.30 |
||
|
10
|
10
1040273-067
Desc not_available
|
1040273-067 |
— | ||
|
11
|
11
5810455 Pad |
5810455 |
US $1.66 |
||
|
12
|
12
7512252
Screw
10; |
7512252 |
— | ||
|
13
|
13
4032058
Headlight asm.
|
4032058 |
— | ||
|
13
|
13
4032059
Bulb
|
4032059 |
— | ||
|
14
|
14
4032044
Guard, stone
|
4032044 |
— | ||
|
15
|
15
7512307 Screw10; |
7512307 |
US $2.45 |
||
|
16
|
16
7073455
Decal, f.susp.
|
7073455 |
— | ||
|
17
|
17
2670137-067
Rack,frt,blk,
|
2670137-067 |
— | ||
|
18
|
18
7661401 Pin,cotter(10)10; |
7661401 |
US $3.94 |
||
|
19
|
19
7515355
Screw
10; |
7515355 |
— | ||
|
20
|
20
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
21
|
21
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
22
|
22
5222272-067
Guard, rock, blk.
|
5222272-067 |
— | ||
|
23
|
23
7661825 Rivet,(50)50; |
7661825 |
US $0.79 |
||
|
24
|
24
2670134 Asm,,reflector,amber |
2670134 |
US $10.83 |
||
|
25
|
25
5431460
Trim, footrest
|
5431460 |
— | ||
| replacement | |||||
|
25
|
25
5431484
Trim, footrest
|
5431484 |
— | ||
|
26
|
26
1040189
Pad, foot, lh.
|
1040189 |
— | ||
| replacement | |||||
|
26
|
26
1040274-117 Footpad,lh,silver |
1040274-117 |
US $101.45 |
||
|
26
|
26
1040220
Pad,foot, rh
|
1040220 |
— | ||
| replacement | |||||
|
26
|
26
1040275-117
New Genuine Part
|
1040275-117 |
— | ||
|
27
|
27
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
27
|
27
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
28
|
28
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
29
|
29
2670138-067
Rack,rear
|
2670138-067 |
— | ||
|
30
|
30
5430823
Cap, bumper, 4 whl.
10; |
5430823 |
— | ||
| replacement | |||||
|
30
|
30
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
31
|
31
7555827 Washer10; |
7555827 |
US $3.26 |
||
|
32
|
32
7661103 Pin, cotter10; |
7661103 |
US $3.26 |
||
|
33
|
33
5224447
Rod,brake link spring
|
5224447 |
— | ||
|
34
|
34
7042029 Spring(10)10; |
7042029 |
US $2.17 |
||
|
35
|
35
1910055-067
Desc not_available
|
1910055-067 |
— | ||
|
36
|
36
7661416
Pin, spiral
10; |
7661416 |
— | ||
|
37
|
37
5130715-067
Pedal,foot
|
5130715-067 |
— | ||
|
38
|
38
7558702 Washer thrust10; |
7558702 |
US $2.45 |
||
|
39
|
39
5431107
Bushing, pedal pivot
|
5431107 |
— | ||
|
40
|
40
2670119-067
Bumper,frt,blk,
4X4,350; |
2670119-067 |
— | ||
| replacement | |||||
|
40
|
40
2631989-067
Bumper,front,blk
4X4,350; |
2631989-067 |
— | ||
|
41
|
41
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
42
|
42
7512126 Screw10; |
7512126 |
US $2.45 |
||
|
43
|
43
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
46
|
46
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
46
|
46
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
47
|
47
5410437 Grommet (10) |
5410437 |
US $3.41 |
||
|
48
|
48
2670133 Reflector asm,red |
2670133 |
US $9.45 |
||
