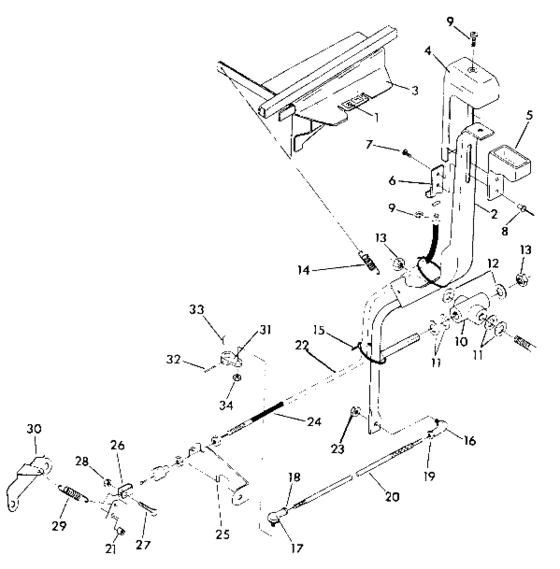

Shift linkage assembly (Norwegian 350 4X4) Diagram Polaris EURO TRAIL BOSS 4X4
- Model code
- S928139
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7072825
Decal,shift
No Longer Available; SCAND.;F; |
7072825 |
— | ||
|
1
|
1
7072826
Decal,shift
No Longer Available; SCAND.;R; |
7072826 |
— | ||
|
2
|
2
1341069-067
Lever,shift weld,
|
1341069-067 |
— | ||
|
3
|
3
1341088
Desc not_available
|
1341088 |
— | ||
|
4
|
4
5431267
Handle,shift lever
|
5431267 |
— | ||
|
5
|
5
5431266
Lever,shift
ACTUATOR; |
5431266 |
— | ||
|
6
|
6
5222576
Clip,cable connect,
|
5222576 |
— | ||
|
7
|
7
7511868
Screw
10; |
7511868 |
— | ||
|
8
|
8
7621322
Rivet, pop(50)
50; |
7621322 |
— | ||
|
9
|
9
7710421 Ring,retain,ext10; |
7710421 |
US $2.28 |
||
|
10
|
10
5431106 Block,shift point |
5431106 |
US $37.63 |
||
|
11
|
11
7555795 Washer,wave spring(10)10; |
7555795 |
US $1.49 |
||
|
12
|
12
75S8302
Desc not_available
|
75S8302 |
— | ||
|
13
|
13
7542303 Nut flex-loc10; |
7542303 |
US $5.22 |
||
|
14
|
14
7041227 Spring,shift lever |
7041227 |
US $7.09 |
||
|
15
|
15
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
16
|
16
7060141
Rod end, lh
|
7060141 |
— | ||
| replacement | |||||
|
16
|
16
7061013 Rod end,lh,6mm. |
7061013 |
US $89.79 |
||
|
17
|
17
7060142
Rod end, rh
|
7060142 |
— | ||
| replacement | |||||
|
17
|
17
7061014 Rod end,rh,6mm. |
7061014 |
US $89.79 |
||
|
18
|
18
7546701 Nut(10)10; |
7546701 |
US $1.49 |
||
|
19
|
19
7546702 Nut(10)10; |
7546702 |
US $1.49 |
||
|
20
|
20
5020538
Rod,shift linkage
|
5020538 |
— | ||
|
21
|
21
5332795
Bushing
|
5332795 |
— | ||
|
22
|
22
5810487
Tape,foil,
1X11; |
5810487 |
— | ||
|
23
|
23
7546703
Nut,nylok
|
7546703 |
— | ||
|
24
|
24
7080420
Cable, shift
|
7080420 |
— | ||
|
25
|
25
5222569-067
Shiftlock, cable,blk.
|
5222569-067 |
— | ||
|
26
|
26
7080316 Pin, clevis |
7080316 |
US $8.66 |
||
|
27
|
27
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
28
|
28
7542101 Nut hex-lock(10)10; |
7542101 |
US $2.45 |
||
|
29
|
29
7042035
Spring,lock
TRANS.; |
7042035 |
— | ||
|
30
|
30
5222570-067
Brkt,spring,shiftlock
|
5222570-067 |
— | ||
|
31
|
31
5130783
Lever, shift
|
5130783 |
— | ||
|
32
|
32
7661506
Pin, spiral
10; |
7661506 |
— | ||
|
33
|
33
7721113 Key, hi-pro |
7721113 |
US $1.49 |
||
