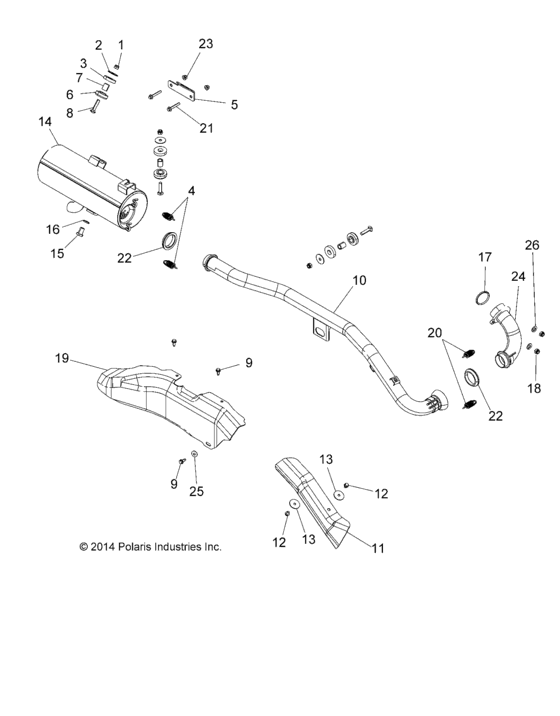

Engine, Exhaust (A15SAA32EH (49ATVEXHAUST15SPETX)) Diagram Polaris HAWKEYE 325 2X4
- Model code
- A15SAA32EH
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
2
|
2
7555716 Washer |
7555716 |
US $2.45 |
||
|
3
|
3
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
4
|
4
7041804 Spring |
7041804 |
US $9.85 |
||
|
5
|
5
5241663 Brkt-silencer,frame pltd |
5241663 |
US $8.17 |
||
|
6
|
6
5412659 Dampener-vibration |
5412659 |
US $2.98 |
||
|
7
|
7
5010192 Bushing |
5010192 |
US $4.94 |
||
|
8
|
8
7515316 Bolt |
7515316 |
US $2.98 |
||
|
9
|
9
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
10
|
10
1262378-489 Weld-exhaust pipe,pwdr blk |
1262378-489 |
US $274.72 |
||
|
11
|
11
5257786 Shield-heat,pipe mnt |
5257786 |
US $38.41 |
||
|
12
|
12
7515197 Screw(10) * |
7515197 |
US $0.79 |
||
|
13
|
13
7556586 Wshr-.270x1.25x.060,fl-zb |
7556586 |
US $1.77 |
||
|
14
|
14
1262445-489 Weld-exhaust silencer,pwdr blk |
1262445-489 |
US $313.06 |
||
|
15
|
15
7512666 Bolt |
7512666 |
US $3.75 |
||
|
16
|
16
7556230 Washer-clean out ,51x,75x,09 (1 |
7556230 |
US $0.79 |
||
|
17
|
17
5256452 GASKET-EXHAUST SEALING, 43.20 |
5256452 |
US $7.09 |
||
|
18
|
18
7547076
Nut,hexhd,m8
|
7547076 |
— | ||
|
19
|
19
5257785 SHIELD-EXHAUST,OUTER,FRAME MNT |
5257785 |
US $43.72 |
||
|
20
|
20
7041789 Spring |
7041789 |
US $9.07 |
||
|
21
|
21
7518341 Bolt-5/16-18x1-3/4 hxflng gr5 |
7518341 |
US $6.56 |
||
|
22
|
22
5256385 Seal-exhaust |
5256385 |
US $25.08 |
||
|
23
|
23
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
24
|
24
1262519 WELD-MANIFOLD |
1262519 |
US $189.07 |
||
|
25
|
25
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
26
|
26
7556111 Washer-lock |
7556111 |
US $2.45 |
