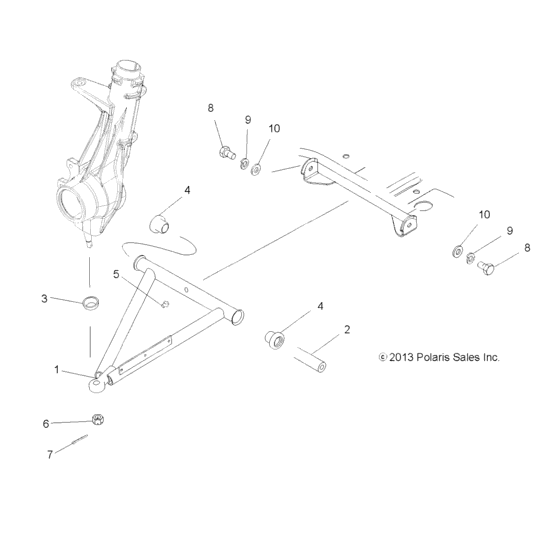

Suspension, A (ARM and STRUT MOUNTING) Diagram Polaris HAWKEYE 325 2X4
- Model code
- A15SAA32EH
- Year
- 2015
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2205079 Kit-a-frame,lh (1543210)INCL. 1,2,4,7,10,11,12 |
2205079 |
US $194.97 |
||
|
1
|
1
2205080 Kit-a-frame,rh (1543211)INCL. 1,2,4,7,10,11,12 |
2205080 |
US $194.97 |
||
|
2
|
2
5133806 Shaft-a-arm |
5133806 |
US $47.23 |
||
|
3
|
3
5414893 BOOT-BALLJOINT,GREASELESS,STRT |
5414893 |
US $2.70 |
||
|
4
|
4
1543326 ASM-BUSHING,HD,W/SEAL |
1543326 |
US $55.16 |
||
|
5
|
5
7080433 Fitting,lubrication,threaded(10 |
7080433 |
US $5.25 |
||
|
6
|
6
7542438 Nut, castle(10) |
7542438 |
US $2.63 |
||
|
7
|
7
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
|
8
|
8
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
9
|
9
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
10
|
10
7555832 Washer |
7555832 |
US $5.25 |
