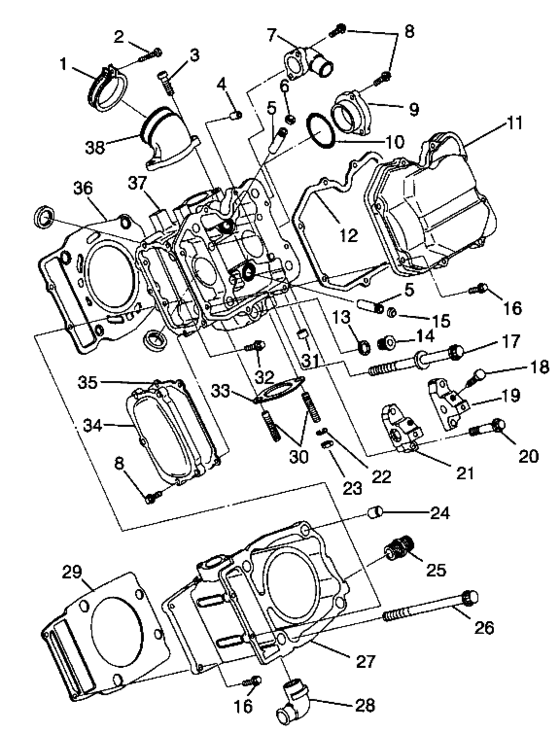

Cylinder (W98AA42A) Diagram Polaris MAGNUM 2X4
- Model code
- W98AA42A
- Year
- 1998
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083166
Asm-adapter band
Incl. 2; |
3083166 |
— | ||
|
2
|
2
3081497 Screw,pan head (10)10; |
3081497 |
US $0.79 |
||
|
3
|
3
3081330 Bolt, socket head |
3081330 |
US $3.26 |
||
|
4
|
4
3084857 Knock,pipe |
3084857 |
US $7.09 |
||
|
5
|
5
3084994 Guide,valve |
3084994 |
US $35.67 |
||
|
6
|
6
3084858 Seal,intake valve |
3084858 |
US $17.05 |
||
|
7
|
7
3085072
Adapter, water out
WATER OUT; |
3085072 |
— | ||
| replacement | |||||
|
7
|
7
3084870 Adapter-water outWATER OUT; |
3084870 |
US $56.14 |
||
|
8
|
8
3084877 Bolt,flange(10)10; |
3084877 |
US $5.25 |
||
|
9
|
9
3084866
Adapter,camshaft
|
3084866 |
— | ||
|
10
|
10
3084867 O-ring |
3084867 |
US $30.10 |
||
|
11
|
11
3085073 Cover,rocker |
3085073 |
US $70.89 |
||
|
12
|
12
3085074 Gasket,(rocker cover) *R.COVER; |
3085074 |
US $40.15 |
||
|
13
|
13
3084861 Gasket |
3084861 |
US $7.91 |
||
|
14
|
14
3084860 Plug |
3084860 |
US $5.11 |
||
|
15
|
15
3084859 Seal,exhaust valve |
3084859 |
US $30.10 |
||
|
16
|
16
3084874 Bolt, flange |
3084874 |
US $1.77 |
||
|
17
|
17
3084875 Bolt |
3084875 |
US $20.69 |
||
|
18
|
18
3084880
Bolt
|
3084880 |
— | ||
|
19
|
19
3084864 Support,valve rocker shaft(pto) |
3084864 |
US $86.68 |
||
|
20
|
20
3084876 Bolt |
3084876 |
US $2.98 |
||
|
21
|
21
3084863 Support,valve rocker shaft(mag) |
3084863 |
US $86.68 |
||
|
22
|
22
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
23
|
23
3080285
Nut
10; |
3080285 |
— | ||
|
24
|
24
3084838
Pin, straight
|
3084838 |
— | ||
|
25
|
25
3084849
Union
|
3084849 |
— | ||
|
26
|
26
3084873 Bolt, flange |
3084873 |
US $26.09 |
||
|
27
|
27
3085641
Cylinder
Incl. 28,31; |
3085641 |
— | ||
| replacement | |||||
|
27
|
27
3087062
Cylinder
Incl. 28,31; |
3087062 |
— | ||
|
28
|
28
3084130
Pipe, elbow, 2
|
3084130 |
— | ||
| replacement | |||||
|
28
|
28
3086747
Pipe-2,elbow
|
3086747 |
— | ||
|
29
|
29
3085370
Gasket, cylinder
|
3085370 |
— | ||
| replacement | |||||
|
29
|
29
3089966 Gasket-cylinder |
3089966 |
US $50.19 |
||
|
30
|
30
3085326 Stud(10)10; |
3085326 |
US $2.66 |
||
|
31
|
31
3084862 Plug, blind |
3084862 |
US $7.51 |
||
|
32
|
32
3084215
Bolt, flange
|
3084215 |
— | ||
| replacement | |||||
|
32
|
32
3086781 Bolt,flange |
3086781 |
US $2.98 |
||
|
33
|
33
3085075 Asm,,gasket(exhaust) |
3085075 |
US $50.19 |
||
|
34
|
34
3084868
Cover, camshaft
|
3084868 |
— | ||
|
35
|
35
3084869
Gasket
|
3084869 |
— | ||
| replacement | |||||
|
35
|
35
3086200 Gasket-cover cam |
3086200 |
US $29.73 |
||
|
36
|
36
3085337 Gasket,head * |
3085337 |
US $97.83 |
||
|
37
|
37
3085527 Asm,,head,cylinder *Incl. 4-6,13-15,30,31; |
3085527 |
US $971.97 |
||
|
38
|
38
3084879 Adapter |
3084879 |
US $91.60 |
||
